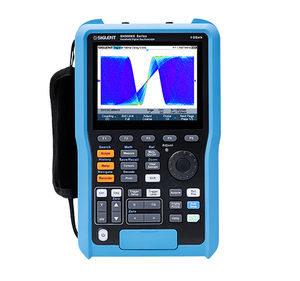

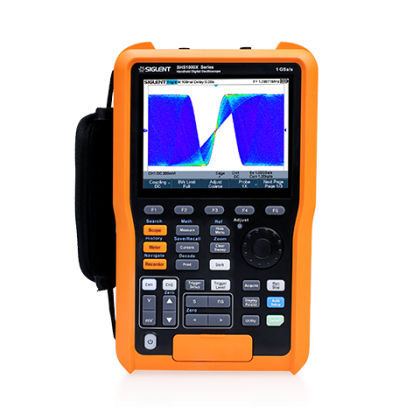

Digital oscilloscope SHS1000X Series

hand-held2-channelUSB

The SHS1000X series features full isolation between the two oscilloscope channels, one multimeter channel, power adapter and the USB host/device port. including 200 MHz and100 MHz model.A single ADC with 1 GSa/s maximum sample rate, and a single memory module with 12 Mpts memory depth. When two channels are enabled, each channel has sample rate of 500 MSa/s and a standard record length of 6 Mpts. When only a single channel is actived, the maximum sample rate is 1 GSa/s and the maximum record length is 12 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.The full isolation makes it ideal for both laboratory and floating signal measurement because it reduces the risk of accidental short circuits. Key Features Siglent SPO technology •Waveform capture rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode) •Supports 256-level intensity grading and color temperature display modes •Record length up to 12 Mpts •Digital trigger system •Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern •6000 counts Digital Multimeter, Support DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity test. •3 one-button shortcuts for Oscilloscope, Multimeter and Recorder functions •5.6-inch TFT-LCD display with 640 * 480 resolution
