Signal analyser SVA1000X series

monitoringvector networkspectrum

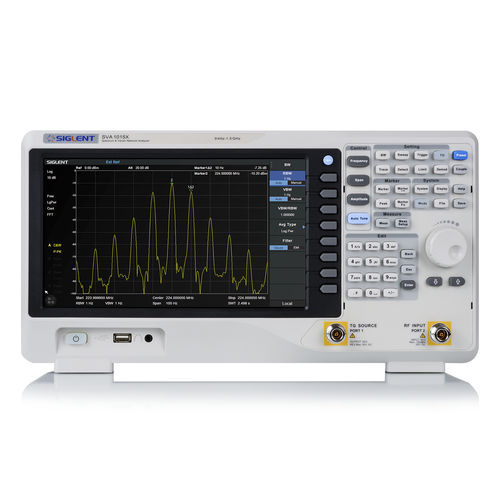

The SIGLENT SVA1000X series spectrum & vector network analyzers are powerful and flexible tools for RF signal and network analysis. With a frequency range up-to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation: the base model is a spectrum analyzer and a vector network analyzer, optional functions include a distance-to-fault locator, a vector signal modulation analyzer. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, cable and antenna testing, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance. Key Features •Tracking Generator (Std.) •Distance To Fault (Opt.) •Vector Signal Modulation Analysis (Opt.) •EMI Filter and Quasi-Peak Detector Kit (Opt.) •Advanced Measurement Kit (Opt.) •10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported •Web Browser Remote Control on PC and Mobile Terminals and File Operation
