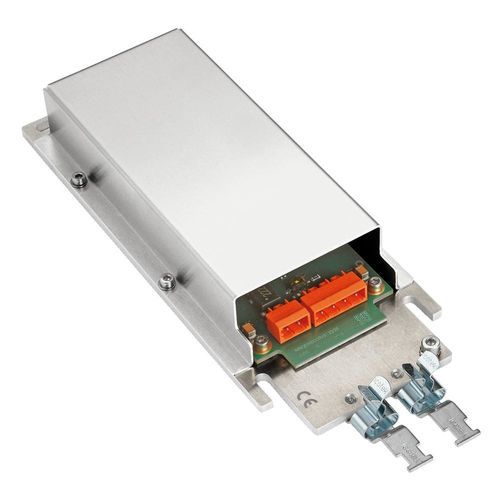

Indoor air quality monitor E04

industrialurban railCO2

Description
The digital multi-sensor measures ambient temperature, relative humidity and CO₂ concentration with high accuracy, providing climate data for demanding industrial and rail applications. Actively ventilated sensing elements ensure fast response times and allow concealed rear-wall mounting for integrated installations without compromising measurement performance.

Rugged design and approvals
Engineered for harsh operating conditions, the unit features very high vibration resistance for reliable long-term operation. Compliance with rail standards is verified by testing to DIN EN 61373 Category 1 Class A and conformity with DIN EN 50155 where applicable.

Special features

• Digital multi-sensor for ambient temperature, humidity and CO₂
• Actively ventilated sensing elements for fast response and rear-wall mounting
• CANopen communication protocol for easy system integration
• Silent fan design to avoid passenger disturbance
• High vibration resistance for durable operation in harsh environments
• Tested to DIN EN 61373 Category 1 Class A; meets DIN EN 50155 requirements

Versions / Options

• Modular multi-sensor variant with active ventilation (configuration options available)

Technical specifications

• Measured quantities: ambient temperature, relative humidity, CO₂ concentration
• Sensing: actively ventilated elements (fast response; suitable for concealed rear-wall mounting)
• Communication: CANopen protocol for equipment/system integration
• Acoustics: silent fan
• Mechanical: very high vibration resistance; designed for harsh environments
• Rail approvals/testing: DIN EN 61373 Category 1 Class A; meets standards such as DIN EN 50155
• Documentation: datasheet and operating manual (product-specific PDFs)
