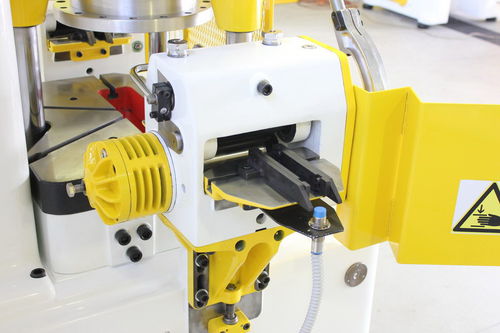

Pneumatic press STA 30/600CE

punchingcolumn typefor saw blades

Stroke power 300 KN (30 tons) Made in Switzerland, all mechanical parts Machine with CE certificate Adjustable speed 60 - 600 teeth (strokes) per minute up to 10 teeth in one second Equipped with twin synchronized double rolls feeds for strips widths from 5 mm - 200 mm Band saw blades 5 - 200 mm width Maximum saw blade thickness 2.2 mm Teeth pitch up to max. 60 mm adjustable, highly accurate With digital teeth counter Programmable length auto stop Digital speed counter Three working mode: single punch, complete stroke and full automatic Two hands safety start and emergency stop Pneumatic clutch Indexing per minute, infinitely variable 60 - 600 strokes Comes with strip straightening device on board and strip lubrication (optional) Tool not included Power consumption 5.5 KW Techincal Air 8 bar Operators instruction manual
