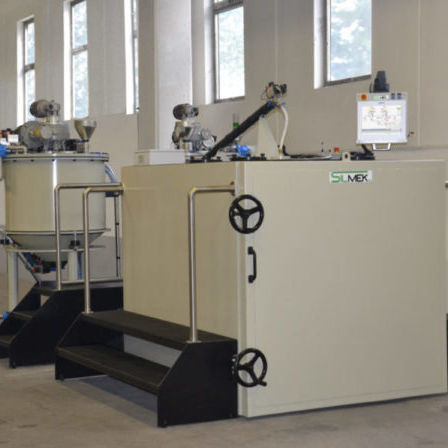

Resin impregnation plant

hot-temperedvacuum

Overview
We manufacture vacuum resin impregnation plants for measurement transformers TA/TV compatible with epoxy, polyurethane and other resins. Systems are custom-designed, fully automated and can be operated remotely. Autoclaves can also serve as polymerization ovens.

Details
Category: Resin impregnation plants for transformers

Key advantages

• Fully automated production lines with X–Y positioning for automated resin coating
• Continuous drying system for filler materials (quartz, wollastonite, etc.)
• Premixed-resin option with BIG-BAG loading for fillers
• Polymerization and drying ovens; autoclaves convertible to ovens
• Reduced footprint, simplified cleaning and maintenance
• Remote control and customer-specific configurations

Technical specifications

• Compatible resins: epoxy, polyurethane and others on request
• Filler handling: BIG-BAG loading, continuous dryer for quartz/wollastonite
• Automation: X–Y positioning, fully automated cycles
• Fresh resin management ensuring maximum fluidity
• Energy consumption: approx. 75 kJ per 100-kg coil (~1/3 of traditional methods; ≈2.13 m³ propane equivalent)
• Compact layout and lower operating costs
