High-voltage detector Perfomaster

sparkpinholeperforation

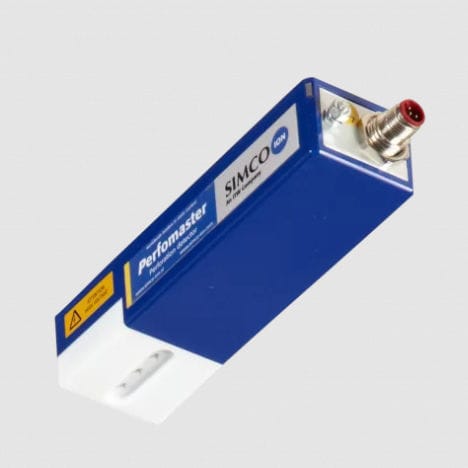

The Perfomaster provides the hardware and software to generate a controlled spark over, detect this and evaluate the spark over to produce a pulse signal. The pulse signal is available on the output connector and can be used for counting the detected spark-overs and thus perforations. The miniaturised design of the Perfomaster contains the electrode as well as the high voltage source. It is powered by 24 V DC, so no high voltage cable is required. Electrodes are standard fitted with three special alloy emitter pins and are detachable for replacement or remote placement. A status signal LED provides direct system information on the Perfomaster. A green LED signals operation OK. An intermittent red LED signals a perforation detected. Supply voltage and output voltage setting to the Perfomaster can be provided in two ways: 1) directly form the machine f.e. PLC 2) with additional external control kit Check perforations Compact Count perforations Determine material position Incorporated high voltage power supply, input voltage 24V DC No high voltage cables needed wo-colour status LED: - Green LED: signals operation OK - Red LED: An intermittent LED signals a perforation detected Supply voltage and output voltage setting can be provided: - Directly from the machine f.e. PLC - With additional external control kit Housing ABS/PTFE Cable low voltage cable, standard M12 connector Input power 24 V DC, <0,5 A Emitter pins special alloy Max detection frequency 25 Hz Signal Multicolour LED: -Green, signal ''operation OK'' -Red, signal perforation detected Signal output Optocoupler Control voltage 0-10 V of 0-24 V Ambient temperature 0 - 55°C Use circumstances industrial
