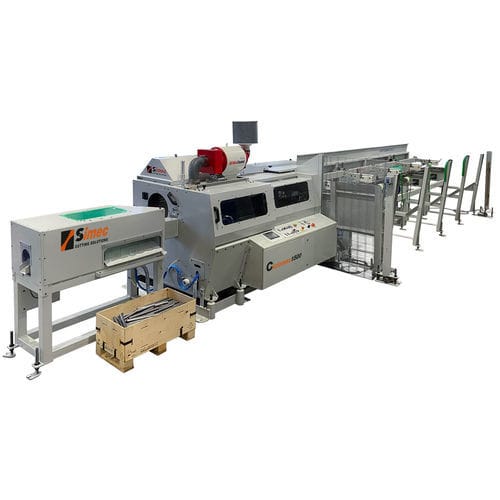

Electric cut-off saw CICLOMAX1500

for metalsfor steel

Overview
Fast automatic circular saw for precise cutting of tubes, solid bars and profiles. Designed for industrial production with automated clamping, positioning and configurable unloading in three directions. Suitable for continuous operation and line integration.

Main features

• Automatic circular saw with stated tolerance ±0.1 mm (plus blade deviation) and additional accuracy note ±0.15 mm.
• 45° inclined cutting head driven by a servomotor on prismatic guides for stability and precision.
• Material clamped and positioned via ball screw with quick-change prismatic jaws.
• Up to 10 programmable cutting lengths managed autonomously to optimise throughput.
• Unloading configurable in three directions: front, rear and scrap; multiposition unloader options available.
• 7.5 kW blade motor, integrated chipper and lubrication system for intensive use.

Additional features

• Processes round tubes, closed profiles and solid bars.
• Duplicable/extendable feed to reach up to 3000 mm by repeating the clamping cycle.
• Quick-change prismatic jaws and modular options for automatic loaders and unloaders.
• Typical cutting time 1.5–9 s depending on material; blade life reported up to 100,000 cuts (conditions dependent).
• Configurable feed and blade rotation ranges (examples: gripper speed up to 90 m/min; blade rotation and feed ranges configurable).

Applications

• Industrial cutting of tubes, bars and profiles for subcontracting, hydraulic/pneumatic components, agricultural and vehicle components, furniture and metalwork production.

Technical specifications

• Model: Ciclomax1500
• Tolerance / Accuracy: ±0.1 mm (product text) — also listed as ±0.15 mm
• Cutting length: 15–1500 mm standard; extendable to 3000 mm by duplicating the clamping cycle
• Round tubes capacity: up to Ø100–Ø102 mm
• Square profiles capacity: up to 80 x 80 mm
• Rectangular profiles capacity: up to 100 x 70 mm
• Solid bars capacity: up to Ø60 mm
• Working diameter: 12–100 mm (reported)
• Machinable length: 3–12 m (reported)
• Cutting time: 1.5–9 s (depending on material)
• Blade motor: 7.5 kW
• Feed system: material clamped and positioned via ball screw; up to 10 programmable lengths
• Unloading: configurable front / rear / scrap; multiposition options
• Options: automatic loader, multiple discharger, chipper, lubrication system, hydraulic power unit, operator panel and protections
