hydraulic press / drawing / deep drawing / hardening
PDH Series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

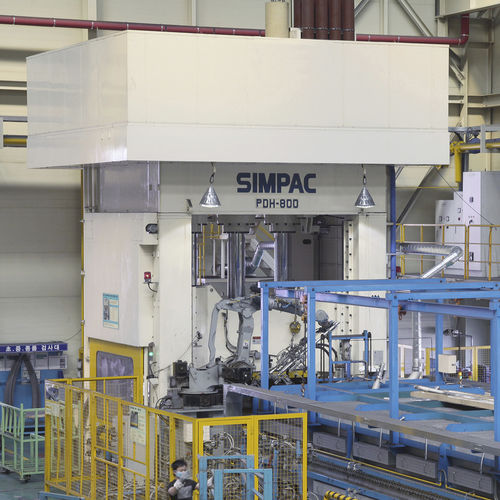

hydraulic press hydraulic press - PDH Series
{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Function:

    drawing, deep drawing, hardening

  • Other characteristics:

    for sheet metal, for industrial applications

  • Opening:

    Max.: 2,000 mm (79 in)

    Min.: 900 mm (35 in)

  • Force:

    Max.: 25,000 kN

    Min.: 1,500 kN

Description

Hydraulic presses are suitable for the high-precision forming of various parts, whereby the maximum press capacity is available in every position of the slide. In combination with their flexibility in terms of slide speed and dwell time, they are also particularly suitable for press hardening applications.

Overview:
● Press capacity: 1,500 - 25,000 kN
● Part size: small, medium, large
● Application: for the production of drawn parts or as part of a press hardening line

Description and benefits:
● Standardized presses for various forming and drawing operations
● Operation as single press or as part of a press hardening line
● Rigid press frame structure in tie rod design
● The precise 8-fold slide guiding provides highly secure guidance during the forming process and minimizes off-center loads
● Specially designed hydraulic system without shift shock during operation
● Motorized oil circulation with cooling or heating unit

The models for press hardening are available in 8,000, 12,000 or 16,000 kN and come with a newly developed combination of servomotor and hydraulics that allows higher speeds in the closing and return movement of the slide.
