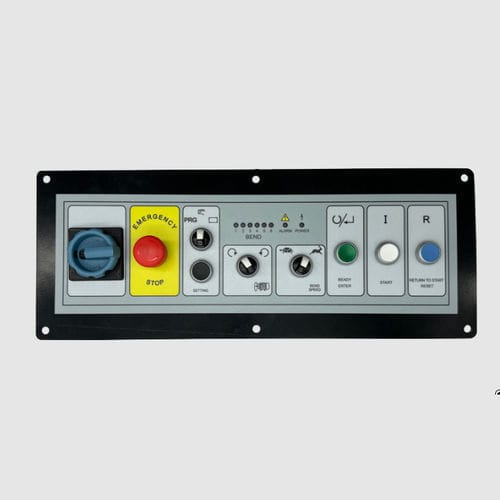

Programmable digital controller

Description
The Basic Angle Control is an electronic system that stores up to 6 consecutive bending angles to optimize cyclic stirrup and bracket production. With a simple gesture you can recall desired settings, manage end stops and monitor processing times. It is offered as an option to improve speed and repeatability in cyclic and continuous production.

Functionality and modes

• Stores up to 6 preset bending angles for quick recall
• Automatic mode: uses preset angles for cyclic production
• Manual mode: preserves traditional manual adjustment using two pegs
• Manages end stops and allows processing time monitoring

Compatibility and variants

• Available as an option on bending machines and combined machines
• Particularly suitable for small construction sites producing stirrups sporadically
• Optional version with two selectable speeds for greater versatility

Benefits

• Increases production speed and repeatability for cyclic stirrup production
• Improves precision compared with manual-only adjustment
• Flexible integration: can be used in automatic or manual operation to suit processing needs

Technical specifications

• Memory: up to 6 consecutive bending angles stored
• Operating modes: Automatic (preset angles) and Manual (peg adjustment)
• Functions: end stop management and processing time monitoring
• Compatibility: retrofit/option for bending machines and combined machines
• Variants: available with two selectable speeds (optional)
