Low level infeed depalletizer TAV

high level infeedfor glass bottlesindustrial

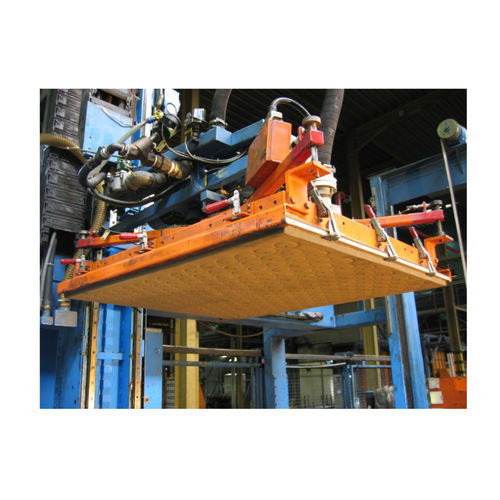

The TAV vacuum head The vacuum head is used for (de)palletization by layer of glass wide-neck jars and bottles. The TAV Flexgrip vacuum head was designed to be attached directly to palletizer robots. It consists of a steel frame and an attachment system for the vacuum plates. This glass container gripping system is the result of many years of experience in vacuum gripping systems. User / use Bottling: (De)palletization of wide-neck jars and bottles by layer. Bottle manufacturers: Palletization of wide-neck bottles, hollow glass, glass jars. General industry: (de)palletization of various containers (plastic containers, cardboard containers, hollow glass, PET…) Technical characteristics The vacuum head for jars consists of a steel frame equipped with an attachment system for vacuum plates as well as an attachment interface adapted to that of the palletizer. The vacuum head’s dimensions matches the dimensions of a European or American pallet. It is equipped with a fitting for connection to the vacuum system. We offer several options depending on your existing installation: Basic unit if you are equipped with a vacuum supply, regulation and control system. (TAV1) Basic unit as well as the vacuum regulation system (TAV2) if you are equipped with a vacuum pump (TAV3). The complete system (TAV3): Basic unit as well as the vacuum control and regulation system + vacuum pump and connection. Performance The TAV vacuum head is simple to install and easy to use. The vacuum plates may be quickly mounted and dismounted thanks to their attachment system. We adapt the head’s dimensions according to the size of your pallets.
