Full layer vacuum gripper PMP

The PMP vacuum plate
The PMP vacuum plate is designed for palletizing and depalletizing jars and similar containers. Compatible with all vacuum heads, it is available in a range of materials, dimensions, thicknesses and hardnesses to meet industrial requirements.

User / use

• Bottling: palletizing and depalletizing jars
• Container manufacturers: palletizing and depalletizing jars
• General industry: handling other containers (plastic containers, PET, etc.)

Technical characteristics

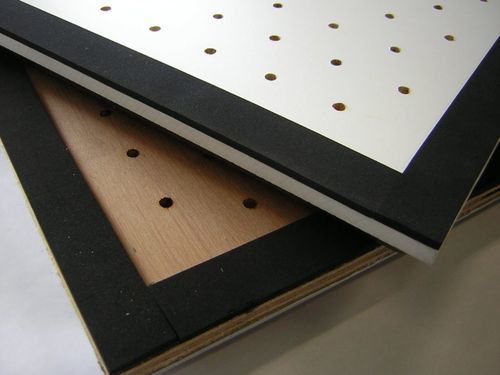

The plates are manufactured from a foam substrate covered by a polymer coating bonded to a support (standard: wood). Standard thickness is 21 mm (foam + coating); other thicknesses and multiple dimensions are available to ensure correct mounting on the vacuum head.

Performance
Quick to change and adaptable to various supports and pallet layouts. Can be supplied perforated to match pallet patterns. Complete vacuum heads can be supplied according to technical specifications.

Composition

• Support (standard: wood; other materials on request)
• Foam plate bonded to the support
• Rubber or polymer top coating

Customisation
Fully custom-made solutions: choice of support and foam dimensions for a precise fit with the vacuum head. Options include PVC support, bakelite-coated wood to prevent degradation, sealing strip between plate and vacuum head, silicone perimeter for improved airtightness, food-contact certified coatings, full-surface coating, aluminium profile to secure the coating, and adhesive strip for foam-only plates.

Why choose Simtech vacuum plates?

• Easy integration into existing installations
• Reduced changeover time
• Space-saving designs
• Cost-effective solutions
• Adaptable to different pallet layouts
• Production flexibility for all jar formats
• Low maintenance

Why choose Simtech quality?

• Manufacturer: Simtech
• ISO 9001:2015 certified
• Qualified staff
• Export worldwide
• Over 25 years of experience

Characteristics / technical specifications

• Model/Type: PMP
• Application: palletizing and depalletizing jars and other containers
• Compatibility: suitable for all types of vacuum heads
• Construction: foam substrate with polymer coating bonded to a support (standard: wood)
• Standard thickness: 21 mm (foam + coating); other thicknesses available
• Dimensions: multiple sizes available for adaptation to vacuum heads
• Materials and options: various materials and hardnesses; PVC support; bakelite-coated wood; food-contact certified coatings; silicone perimeter; aluminium profile; adhesive strip
• Optional: perforated plates according to pallet layouts; complete vacuum heads available
• Mounting: plates must be mounted precisely on the vacuum head; custom dimensions available
• Maintenance: quick to change; low maintenance
• Manufacturer: Simtech
• Certifications & experience: ISO 9001:2015; over 25 years of experience
