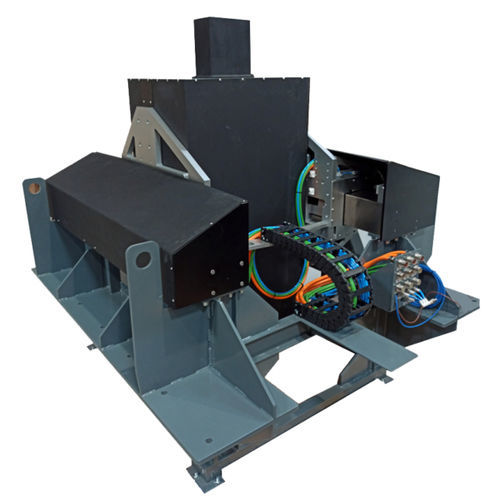

Air bearing positioning system XYlinearindustrial
Add to favorites
Compare this product
Characteristics
- Number of axes
- XY
- Features
- linear
- Applications
- industrial
- Other characteristics
- linear motor-driven, air bearing
- Repeatability
3 µm
- Speed
1 m/s
(3.28 ft/s)
Description
MULTI-AXIS SYSTEM WITH AIR BEARINGS
Product information of this special project with X-Y linear motor stage system with air bearings
Air-bearing 2 linear motor stage system:
Bearing: Air-bearin on X and Z axis
Basic structure : Ground steel
Peak force: X Axis: 16800N, Z Axis: 9840N
Measuring system:
-Repeatability: ± 0,5 μm
-Resolution : 100nm mit Safety
Max. Acceleration: 130 m/s2
VIDEO
Catalogs
No catalogs are available for this product.
See all of SINADRIVES‘s catalogsOther SINADRIVES products
SPECIAL MULTI-AXIS PROJECTS
