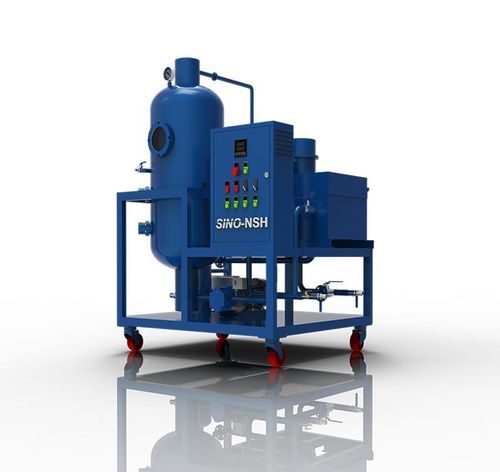

Oil purification system NSH-LV-series

for industrial applicationsby filtration

General
Lubrication Oil Dehydration and Purification Solutions
NSH-LV series is suitable for all types of lubrication oils, such as hydraulic oil, machine oil, coolant oil, etc. It is able to remove moisture, gasses, particulate matter, etc. Customized solutions are acceptable.

• Brand Name:Sino-NSH
• Series:LV
• Treating Oil:Lubrication Oil
• Function:Dehydration, Degassing, Impurities-removal
• Flow Rate:600-12000 Liter/Hour
• Power Supply:380VAC / 3Phase / 50Hz (or tailorable to yours)
• Delivery Time:10 working days
• Supply Ability:50 sets per month

Application
LV series oil purifier are specially suitable for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil. Most of breakdown of machinery which has lubrication oil system results from contaminated lubrication in which has water, gas, impurities etc. LV series can rapidly remove water, gas, particulate matters and impurities from lubrication oil and improve properties of lubricating oil so as to greatly extend lifetime of machinery which has lubrication system.

Features

• Perfect capacity of removing impurities. The special filters made by NSH are made of special materials which can eliminate various impurities, water and gas effectively and rapidly.
• Automatic reverse wash system will extend the lifetime of filters and improve the performance of the filters.
• High performance of security system including pressure protection device and automatic temperature controller makes purifier operate safely.
• Online work.
• Easy handling and maintenance.
• Lower maintenance and replacement expenses.
• Small size, light weight, low noise.
• Various sizes and configurations (alloy shield) available.

Oil data after purification
Clearness | NAS | ≤ 6
Water content | ppm | ≤ 100
Gas content | % | ≤ 0.1
Impurity size | μm | ≤ 5

Machine specification (by model)
Item | Unit | LV-10 | LV-20 | LV-30 | LV-50 | LV-100 | LV-150 | LV-200
Flow Rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000
Vacuum Range | MPa | -0.065 ~ -0.096 (applies to all models listed)
Working Pressure | MPa | ≤ 0.3 (applies to all models listed)
Clearness | NAS | ≤ 6 (applies to all models listed)
Temperature Range | °C | 40 ~ 80 (applies to all models listed)
Water Content | ppm | ≤ 100 (applies to all models listed)
Impurity Size | μm | ≤ 5 (applies to all models listed)
Power Supply | V | 380V/50Hz (or as needed)
Working Noise | dB | ≤ 70 (small models) / ≤ 75 (larger models)
Heating Power | kW | 15 | 18 | 30 | 45 | 90 | 120 | 180
Total Power | kW | 17 | 21 | 35 | 50 | 97 | 126 | 186
Pipeline Diameter | mm | 25 | 25 | 25 | 32 | 40 | 50 | 65
Net Weight | Kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400
Size (L x W x H) | mm | 1350 x 1100 x 1700 | 1500 x 1200 x 1750 | 1550 x 1250 x 1800 | 1900 x 1400 x 1800 | 2200 x 1500 x 1850 | 2400 x 1600 x 1900 | 2900 x 1800 x 2000

Extra Options

• Base frame with caster wheels
• Metallic enclosure cover on caster wheels
• Metallic enclosure cover on single-axle trailer
• Base frame on double-axle trailer
• Metallic enclosure cover on double-axle trailer
• Metallic enclosure cover with operator room on double-axle trailer

Also named
Vacuum dehydrator, Vacuum purification system, Oil degasification, Oil regeneration, Oil recycling
