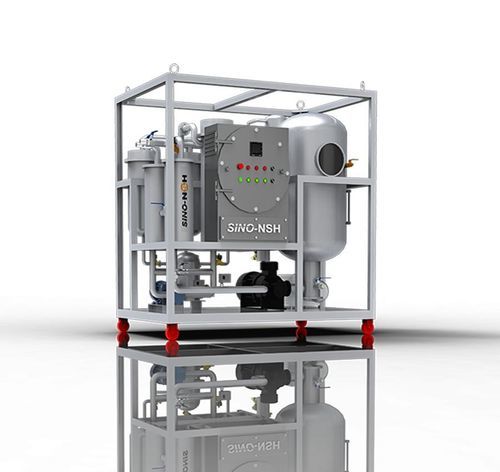

Oil purification system NSH-LV-E series

for industrial applications

General
Explosion-proof Hydraulic Oil Purifier
NSH-LV-E is Explosion-proof type designed for flammable and combustible working conditions in power plant. It is a vacuum purification plant which is used for turbine oils and is able to remove large large water, gasses, particulate matter, etc. Customized solutions are acceptable.

• Brand Name:Sino-NSH
• Series:LV
• Treating Oil:Lubrication Oil
• Function:Dehydration, Degassing, Impurities-removal
• Flow Rate:600-12000 Liter/Hour
• Power Supply:380VAC / 3Phase / 50Hz (or tailorable to yours)
• Delivery Time:10 working days
• Supply Ability:50 sets per month

Application
LV series oil purifier are specially suitable for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil. Most of breakdown of machinery which has lubrication oil system results from contaminated lubrication in which has water, gas, impurities etc. LV series can rapidly remove water, gas, particulate matters and impurities from lubrication oil and improve properties of lubricating oil so as to greatly extend lifetime of machinery which has lubrication system.

Features
1. Perfect capacity of removing impurities. The special filters made by NSH are made of special materials which can eliminate various impurities, water and gas effectively and rapidly.
2. Automatic reverse wash system will extend the lifetime of filters and improve the performance of the filters.
3. High performance of security system including pressure protection device and automatic temperature controller makes purifier operate safely.
4. Online work.
5. Easy handling and maintenance.
6.Lower maintenance and replacement expenses.
7. Small size, light weight, low noise.
8. Various sizes and configurations (alloy shield) available.

Oil Data After Purification
Clearness — NAS — ≤ 6
Water Content — ppm — ≤ 100
Gas Content — % — ≤ 0.1
Impurity Size — μm — ≤ 5

Machine Specification (summary by model)
Flow Rate (L/h): LV-10: 600; LV-20: 1,200; LV-30: 1,800; LV-50: 3,000; LV-100: 6,000; LV-150: 9,000; LV-200: 12,000
Vacuum Range (MPa): -0.065 ~ -0.096
Working Pressure: ≤ 0.3 MPa
Post-treatment Clearness: NAS ≤ 6
Temperature Range (°C): 40 ~ 80
Water Content: ≤ 100 ppm
Impurity Size: ≤ 5 μm
Power (typical): 380V/50Hz (tailorable)
Working Noise: ≤ 70–75 dB depending on model
Heating Power (kW) & Total Power (kW): model-dependent (see specifications)
Pipeline Diameter (mm), Net Weight (kg) and Size (mm): model-dependent (see technical data)

Extra Options

• Base frame with caster wheels
• Metallic enclosure cover on caster wheels
• Metallic enclosure on single-axle trailer
• Base frame on double-axle trailer
• Metallic enclosure on double-axle trailer
• Metallic enclosure with operator cabin on double-axle trailer

Also named

• Vacuum dehydrator
• Vacuum purification system
• Oil degasification unit
• Oil regeneration system
