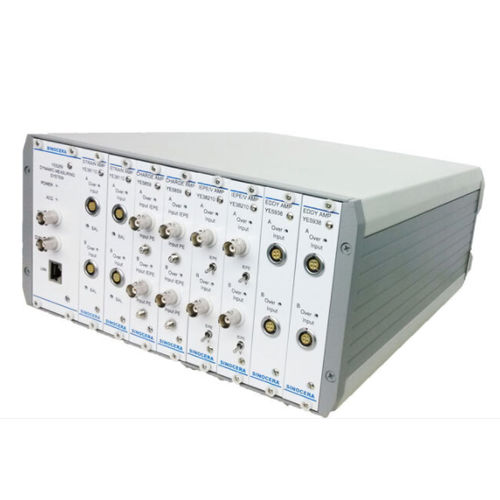

Data analysis system YE6270

YE6270 dynamic signal test analysis collector YE6270 is a high-performance, high-precision, high-reliability data acquisition device independently developed by Jiangsu Lianneng Electronic Technology Co., Ltd. Configuration of different front conditioners can complete testing and analysis of physical quantities such as stress, strain, vibration (acceleration, speed, displacement), shock, temperature and humidity, pressure, flow, force, torque, voltage, current, etc., and has strong anti-interference And industrial environment adaptability. Adopt high-speed USB2.0 and Gigabit Ethernet interface to ensure the convenience of PC connection and high-speed data transmission; High precision, low distortion and low noise; Built-in constant current sources, program-controlled gain amplifiers, analog filters and other signal conditioning circuits, as well as anti-aliasing filters, 24-bit high-precision A / D converters, sampling control, and all hardware for computer communications; A single machine can constitute a 4-channel, 8-channel, 16-channel (32-channel needs to be customized) measurement system; it can also be synchronized with a maximum of 224 channels of cascaded multi-machines in parallel to meet the needs of different test systems; 24-bit high-precision A / D converter, multi-channel simultaneous sampling, the highest sampling rate is 300KHz / each channel; the sampling rate of each channel is independently set; The input can be equipped with different pre-conditioners to achieve multiple ways of signal input: YE5859 charge conditioner, YE38110 strain conditioner, YE38210 IEPE conditioner,
