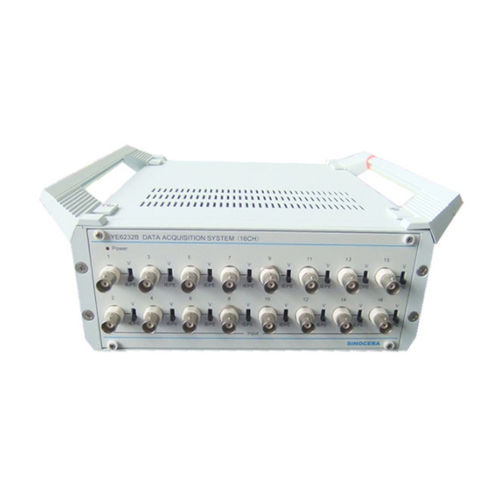

Benchtop data acquisition unit YE6232B

Model YE6232B Channels 16 A/D bits 24bit(∑-△) Input Mode V/IEPE IEPE Power Supply 4mA/+24VDC Signal Input Range ≤±10VP Signal Frequency Range DC-30kHZ(-3dB±1dB) Gain ×1 , ×10, ×100 Filter Independent Anti-filtering Accuracy ±0.5％ Sample Rate (Max.) 96kHz/CH, Parallel Interface USB2.0 Trigger Modes Signal Trigger Dimensions (mm) 236W×88H×277D Software YE7600 Weight 4 Kg Power Supply AC: 220V 50Hz 110V 60Hz
