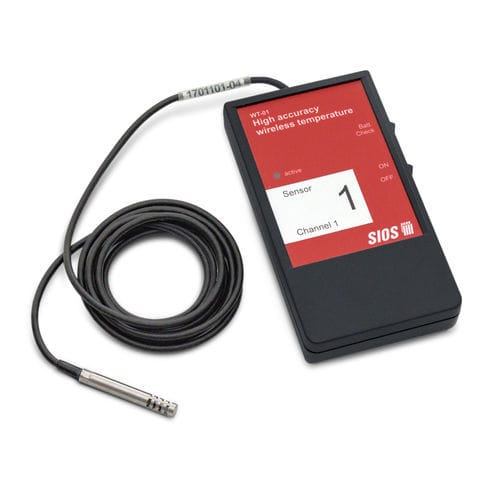

Pt100 temperature sensor WT-01

wirelessmulti-channel

Wired temperature sensors potentially enable simple operation and precise measurements. In some applications, however, they are rather impractical, e.g. at remote or difficult to access measuring points or for short-term measurement setups. Our WT-01 wireless temperature sensors offer an ideal solution by forming a sensor network with up to 15 measuring points with a typical battery life of approx. one month. The WT-01 wireless temperature sensor can be connected to any Pt100 temperature sensor with a 3 mm connection cable. As a standard solution, we offer three different Pt100 designs with cable lengths of 1 m (material sensor) and 1.5 m (air sensor). Customized lengths are available on request. The wireless temperature sensor WT-01 requires a corresponding base station, which is integrated in the environmental module UW-34, the climate measuring station LCS-01 and the sensor box SB-36.
