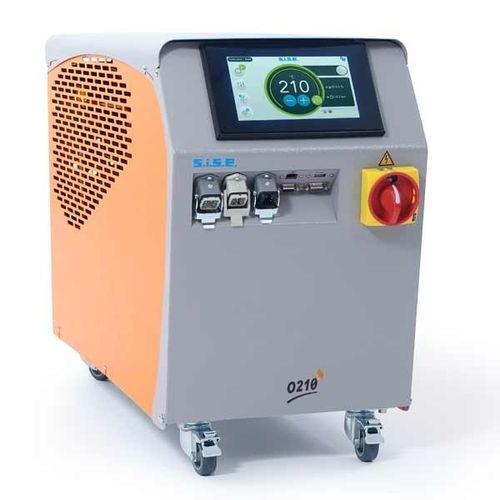

Oil temperature controller O210 series

digitalwith touchscreencirculating oil

Overview
SISE oil temperature controllers provide industrial temperature regulation for oil heat-transfer circuits, engineered for injection molding, composites processing and other high-temperature industrial applications. The range is based on SISE expertise and the Parmilleux integration, offering models for small modular installations up to large multizone systems.

Product families & highlights

• MV3 Series multizone controllers: touchscreen options 7" , 10" or optional 12" for applications with many zones.
• Modular controllers: single-zone and interchangeable dual-zone modules (1ZX and 8 Series) for scalable small to medium zone counts.
• Oil temperature controller lines: Type 180 H 9 I; e-therm O210 (M6/9/12 and L9/12/18/24 versions); ZH / XH series.

Applications

• Automotive: temperature control for large injection-molded parts (fenders, dashboards, door modules).
• Technical parts and electrotechnical components.
• Aeronautical and composites processing.
• High-temperature processes in calendaring, petrochemical and chemical industries.

Product features

• Temperature capability: product lines covering typical ranges of 180°C and 210°C; selected models rated up to 350°C (model-dependent).
• Available topologies: single‑zone modules, interchangeable dual‑zone modules and multizone touchscreen controllers to match zoning complexity.
• Designed for compliance with applicable industrial safety standards and for reliable operation in high-temperature circuits.
• Component selection and mechanical design targeted for long service life under thermal stress.
• Options for integration with process monitoring, data acquisition and sequential valve‑gate control systems.

Available models / designations

• Type 180 H 9 I
• Type e-therm O210 — M6 / M9 / M12
• Type e-therm O210 — L9 / L12 / L18 / L24
• Type ZH — XH

Applications examples & added-value

• Precise oil-based temperature control for injection molding of plastics, improving dimensional stability and surface quality.
• Adaptation to composite processing and aeronautical part manufacture where high-temperature control is required.
• Custom solutions such as electrically heated tubes and skids for extreme temperature or pressure requirements.

Technical specifications

• Oil temperature working ranges: typical series at 180°C, 210°C and selected models up to 350°C.
• MV3 touchscreen sizes: 7" , 10" and optional 12".
• Modular families: 1ZX and 8 Series single- and dual-zone modules.
• Compatible fluids: oil, water, pressurized water (depending on model).
• Refer to product datasheets (PDF) for detailed electrical, hydraulic and dimensional data per model.
