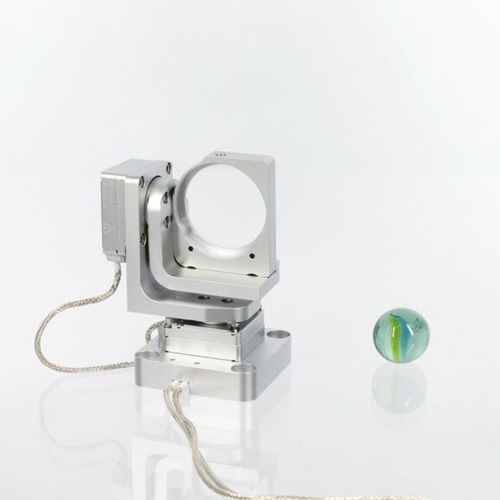

Mounting mirror holder STT-2013

motorizedaluminumtitanium

The STT-2013 is a gimbal type mirror mount that offers a wide agular travel range to position the optical component In difference to the kinematic mirror mounts, the STT-2013 mirror mount has a gimbal design which allows for full 360° rotations in two degrees of freedom. With the use of an adapting mirror mount optical mirrors of 0.5 and 1 inch diameter can be used. It is available as an open-loop or a closed-loop version as well as a specialized version to be used in high and ultra-high vacuum environments. Mechanical Dimensions [mm] - 35 x 46 x 61 Weight [g] - 30 Mirror Diameter [inch] - 0.5; 1 Tip Angles [ - ± 90 Tilt Angles [ - ± 90 Open-loop Angular Velocity [°/s] - 45 Closed-Loop Closed-Loop Resolution MCS2 [µ - 25 (S) Options Vacuum Options - HV (1E-6 mbar); UHV / UHVT (1E-11 mbar) Non-Magnetic Option - Yes (-NM)
