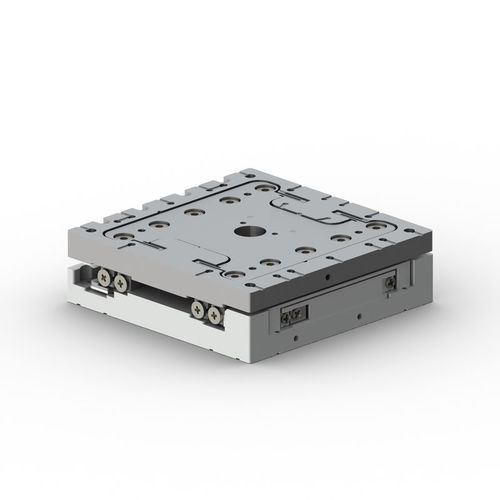

Linear stage DLS-5252

piezocompactaluminum

Hybrid drive stages combine the advantages of long travel range stick-slip stages and high resolution piezo scanners. Like all of SmarAct’s hybrid drive stages, the DLS-5252 combines the advantages of long travel stickslip stages with high resolution piezo scanners. The DLS-5252 is compatible with the SmarAct modular system, which means that the stage can easily be mounted to the CLS-52 stages, equivalent rotation stages and all adapter plates and connecting elements. The stage requires only one channel of the MCS2 although it consists of two different drive units. Mechanical Scan Range [µm] > 35 Blocking Force [N] > 3.5 Max. Normal Force [N] 5.0 Max. Lift Force [N] > 1.5 Weight [g] - 130 Dimensions [mm] 52 x 52 x 15 (L x W x H) Resonance Frequency (no load) [Hz] - > 350 Closed-Loop Closed-Loop Resolution MCS2 [nm] - 1 (S) Scan Cut-off Frequency [Hz] - > 10
