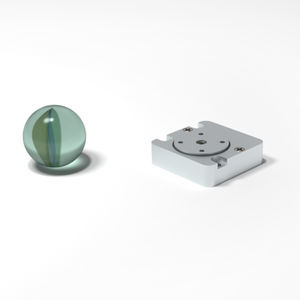

Closed-loop stage SLC-2430-F

linearpiezohigh-accuracy

The SLC-2430-F is the most compact positioning stage of SmarAct's Closed-Loop Cryogenic Stages. Due to its small dimensions, it is particularly suitable for cryogenic applications with space constraints. In combination with its unrivaled positioning performance it becomes of unmatched unique value in low-temperature quantum technologies like quantum computing. Mechanical Scan Range [µm] ~ 1 @ 4 K; 5 @ 300 K Blocking Force [N] ≥ 2 Max. Normal Force [N] 30 Max. Lift Force [N] ≥ 1 Dimensions [mm] 30 x 28 x 14 Weight [g] - 60 Closed-Loop Resolution [nm] - < 0.5 Closed-Loop Repeatability, Full Stroke MCS2 [nm] - ± 25 Closed-Loop Repeatability, 1 mm Travel MCS2 [nm] - 5
