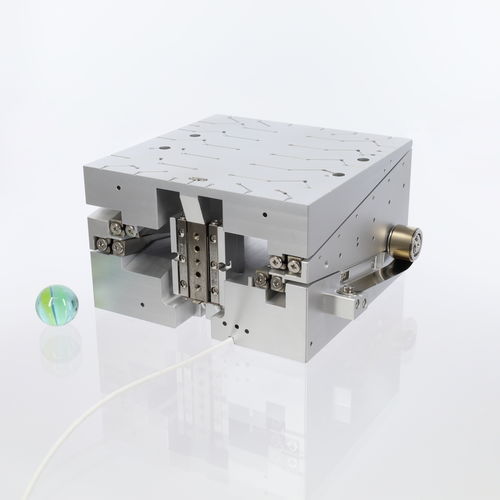

High-load stage CHS-9257-1D-15linearpiezolong-travel
Add to favorites
Compare this product
Characteristics
- Orientation
- linear
- Type
- piezo
- Other characteristics
- closed-loop, high-load, long-travel, open-loop
- Stroke
20 mm
(0.787 in)- Speed
2 m/s
(6.56 ft/s)- Repeatability
40 nm, 200 nm
Description
This long travel high load stage is equipped with SmarAct's exchangeable drive unit, which allows the complete piezo drive to be removed from the stage when required for servicing. Since the drive unit is accessible from the stage's side, the device does not need to be removed from the positioning setup during servicing. The mechanical design is based on an actuated wedge which guarantees highest resolution of the stages' motion. A separate guideway assures a straight movement along the load direction and allows an integration of a position sensor for direct position feedback and closed-loop operation. The mountinghole pattern supports an easy screwing to the linear stages of the CLS92-Series. Optionally, the maximum lift force can be increased upon request.
