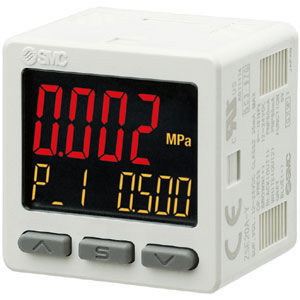

Vacuum pressure sensor 25A-ISE20

digitalbrassstainless steel

The 25A- series variations are compatible with secondary battery manufacturing for electronics, automotive, and other vehicle types. 25A-ISE20 is a digital pressure sensor with an infomative, easy to read 3-screen, 3-color display. The main screen shows the instantaneous reading in red or green, while two sub-screens can display the setting label and its numeric value in orange. 25A-ISE20 saves energy by consuming only 25mA of current. The switch output responds within 1.5ms once the set pressure value is reached. Secondary battery capability is achieved by providing a piping port in stainless steel rather than brass. Bracket mounting inserts found on the standard ISE20 are omitted as well. 25A-ISE20 is UL/CSA, CE and RoHS compliant with an IP40 enclosure rating. • Suitable for the secondary battery manufacturing environment • Lowest energy consumption of any ISE, at 25mA • 3 setting modes: 3-step, simple, function selection • 5 pressure units: MPa, kPa, kgf/cm2, bar, psi • 1 switch output (NPN or PNP) • Port size: M5 female • Panel mounting adapter available
