Hydraulic fitting KQ2 series
screw-inT-shapedelbow

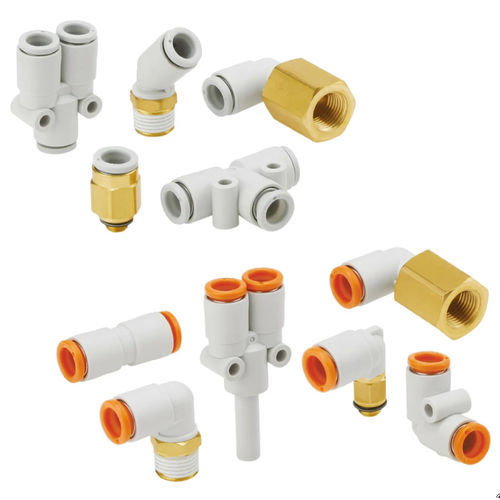

Hydraulic fitting - KQ2 series - SMC PNEUMATIC - screw-in / T-shaped / elbow
Hydraulic fitting - KQ2 series - SMC PNEUMATIC - screw-in / T-shaped / elbow
Hydraulic fitting - KQ2 series - SMC PNEUMATIC - screw-in / T-shaped / elbow - image - 2
Hydraulic fitting - KQ2 series - SMC PNEUMATIC - screw-in / T-shaped / elbow - image - 3
Hydraulic fitting - KQ2 series - SMC PNEUMATIC - screw-in / T-shaped / elbow - image - 4
Add to favorites
Compare this product

Characteristics

Applications
hydraulic
Attachment
screw-in
Configuration
T-shaped, elbow
Material
nickel-plated brass
Other characteristics
O-ring face seal, compact, lightweight
Diameter

Max.: 16 mm
(0.63 in)

Min.: 2 mm
(0.079 in)

Operating pressure

Max.: 100,000 Pa
(14.5 psi)

Min.: 0 Pa
(0 psi)

Description

・Body types: Total of 51 models ・Thread material/Surface treatment (Treated or Non-treated): 2 types ・Selectable surface treatments: Brass (No plating), Electroless nickel-plated brass ・Applicable tubing O.D. ・Seal method 　Sealant/Gasket seal 　Face seal 　Gasket seal（Uni thread）
