Compact fittings

Diameter: 16 mm - 80 mm
Operating pressure: -0.98 bar - 16 bar

PREVOST PIPING SYSTEM, The 100% aluminium fittings : PREVOST designs and manufactures its new PPS1 100% aluminium fittings to ensure that they are the most compact and effective on ...

Diameter: 0.06 in

Minimatic barb fittings from Clippard are corrosion resistant due to nickel plating which makes them perfect to be used in applications involving high amounts of moisture. These fittings can substitute ...

Diameter: 0.06 in - 0.19 in

... external thread size of 15/32-32 and its nut is 9/26. Plus, it is made of 303 stainless steel which has a compact size of 0.45. Features and Beneîlts •Compact Size Accommodâtes Tight Spaces -Idéal ...

Diameter: 4 mm - 16 mm
Operating pressure: -0.9 bar - 16 bar

These technopolymer fittings are designed with various features for high efficiency. They feature brass inserts, nickel-plated brass collets, and NBR seals. The gas cylinder is as per ISO-228 (BSP). The units operate ...

Diameter: 6 mm - 11 mm
Operating pressure: 16 bar

The Stäubli RCS quick-release coupling range combines a perfect seal with an anti hose-whip safety system for all your compressed air networks. Simple connection and disconnection ensures operator comfort and responsiveness. The ...

Diameter: 6 mm - 12 mm
Operating pressure: 10 bar

... that circuits are locked and facilitate circuit identification. The full flow RPL range combines excellent flow rate, compact design and ruggedness.

Diameter: 3 mm - 16 mm
Operating pressure: 450 bar

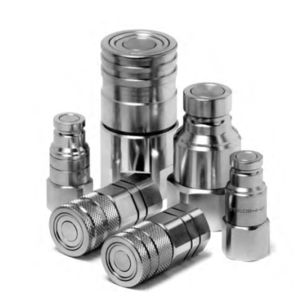

The Stäubli CBX quick-release coupling range is the ideal anti-pollution connection solution for high-pressure hydraulic circuits. These flat-face non-spill couplings ensure operator safety and guarantee fluid integrity. The automatic ...

Diameter: 12 mm - 63 mm

... protective conduit: SILVYN® SI SILVYN® SP SILVYN® SP-PU Product features High-tensile Robust Compact design Product Make-up Metric connection thread Conduit entry with special ...

Diameter: 7 mm - 48 mm

SILVYN® US is a nickel-plated brass conduit insert for use with SILVYN® US-M or separately to cover sharp conduit endings

Diameter: 16 mm - 63 mm

Benefits High chemical-resistance For high mechanical stress High tensile strength Corrosion-resistant Application range In combination with protective conduit: SILVYN® UI 511 Product Make-up ...

Diameter: 8 mm
Operating pressure: 0 Pa - 1,000,000 Pa

Series 487 ultraFLOW, DN8 Aluminium Unequalled low pressure drop Lightweight and compact design Colour coding option to eliminate cross connection Universal connections for total flexibility The CEJN ...

Diameter: 11 mm
Operating pressure: 0 Pa - 1,600,000 Pa

... 550 is a safety coupling that feature an easy-to-grip design with a fully automatic function. They are smaller, much more compact and generate higher flow than comparable designs. eSafe is a one hand operated safety coupling ...

Diameter: 5.5 mm
Operating pressure: 0 Pa - 1,200,000 Pa

CEJN AB series 291 DN 5.5 button style couplings and nipples are compact, light and quick-connect type. They have an advanced design that meets ergonomic and industrial design demands. It can be connected/disconnected ...

Diameter: 6 mm - 12 mm
Operating pressure: 0 bar - 25 bar

- Whitworth pipe thread - Frame components with media contact: Material stainless steel AISI 304/ 304L (1.4301/1.4307) - Frame components without media contact: Material brass chemically nickel-plated - Temperature range 32 to 176 ...

Operating pressure: 0 bar - 25 bar

- Whitworth pipe thread - Frame components with media contact: Material stainless steel AISI 304/ 304L (1.4301/1.4307) - Frame components without media contact: Material brass chemically nickel-plated - Temperature range 32 to ...

Diameter: 0.79 mm - 6.35 mm
Operating pressure: -1 bar - 6.9 bar

... pushed onto the fitting by hand and also ensures a leak-tight connection along the inner diameter of the tubing. Barb fittings are best suited for use with soft flexible tubing such as Polyurethane or ...

Diameter: 1.6 mm - 9.5 mm
Operating pressure: 0 bar - 10.3 bar

Beswick's stainless steel, Push-To-Connect style fittings permit easy tube connections and disconnections, and are an excellent choice for use with many types of plastic or metal tubing including Polyurethane, Polyethylene, ...

Diameter: 0.1 mm - 2 mm
Operating pressure: -1 bar - 68.9 bar

... stainless steel in sizes down to 0.004”. With tolerances of 0.0005”, these orifices are excellent for precise flow control in a compact envelope under constant, known pressures. Common applications include: controlled ...

Operating pressure: 3, 6 bar

Universal, pneumatically operated retractable fitting in a modular design for fully automatic operation. Facts compact, smooth, and dirt-resistant design with interior media routing and integrated ...

Operating pressure: 6, 16 bar

Hygienic, pneumatically operated retractable fitting for use with fully automatic Unical controllers. Facts steam-sterilizability validated for all process-wetted parts incl. rinsing/calibration chamber compact, ...

Operating pressure: 10, 16 bar

SensoGate WA 131 H Retractable Fitting Hygienic, pneumatically operated retractable fitting with a modular design for easy control. Compact, dirt-proof fitting for ...

Diameter: 0.13 in - 2 in
Operating pressure: 15 bar - 75 bar

The SP Cupla Type A is recommended for processes involving air, water, hydraulic oil, and chemicals. It yields a maximum working pressure of 15 to 75 bar. The housing materials of this coupling consist of steel, stainless steel, and brass. ...

Diameter: 9.5 mm
Operating pressure: 10 bar

The Micro Cupla model manufactured by Nitto, is a low-pressure quick coupling that features a push-to-connect design. This device offers a compact construction, to deliver piping applications in narrow ...

Diameter: 14 mm
Operating pressure: 7 bar

... lightweight and compact in size. Their bodies are structured from chrome-plated brass which imparts a high degree of anti-corrosive properties. The couplings give a consistently efficient performance and are long-lasting. ...

Diameter: 4, 12, 6, 8, 10 mm
Operating pressure: -0.99 bar - 20 bar

... serie came up to answer the most estreme demands of pneumatic automation. It is a line in technopolymer , lighter and more compact which offers to demanding customers high performances. Wide Range ø 2 - 14 mm. Main ...

Diameter: 4 mm - 14 mm
Operating pressure: -0.99 bar - 20 bar

... serie came up to answer the most estreme demands of pneumatic automation. It is a line in technopolymer , lighter and more compact which offers to demanding customers high performances. Wide Range ø 2 - 14 mm. Main ...

Diameter: 0.13 in - 1.5 in
Operating pressure: 0 bar - 420 bar

... - The modular design allows flexibility with a wide range of configurations. - Good resistance at impulse pressures. - Compact slim design. - Safe and simple to use.

Diameter: 0.38 in - 1.5 in
Operating pressure: 0 bar - 350 bar

... wide range of configurations. - Good resistance at impulse pressures. - Galvanized black body for easy identification. - Compact slim design. - Safe and simple to use

Diameter: 0.38 in - 1.5 in
Operating pressure: 0 bar - 350 bar

... - The modular design allows flexibility with a wide range of configurations. - Good resistance at impulse pressures. - Compact slim design. - Safe and simple to use.

Diameter: 4 mm - 33 mm
Operating pressure: 2.5 bar

NORMAQUICK® V2 plastic quick connectors are an ideal means to connect media carrying lines as well as ventilation and exhaust lines in the combustion engine. The connectors can be used for both line-to-line and line-to-device connections. ...

Diameter: 4 mm - 20 mm
Operating pressure: 0 bar - 16 bar

The 1+ connector consists of just two parts, the connector body and the pressure screw. The clamping ring is incorporated into the pressure screw. The thread and connecting sleeve are integrated inside in the connector body. They cannot ...

Diameter: 4 mm - 18 mm
Operating pressure: 0 bar - 10 bar

The flexible tube is pushed onto the integrated connecting sleeve of the 1A flexible tube con-nector. By tightening the knurled nut, the clamping ring presses against the flexible tube and fixes it in place. The connecting sleeve for ...

Diameter: 4.8 mm
Operating pressure: 0 bar - 35 bar

Features: ■Non-valved couplers have minimum flow resistance for maximum cooling ■Couplers and nipple are precision machined from solid bar stock. ■Steel ,Brass ,Stainless steel are available upon request

Diameter: 4 mm - 24 mm
Operating pressure: 0 bar - 50 bar

... SAE AS 71051:1999 Commprise fitting sealing effect nested perfect,with easy to install,compact appearance of the characteristics of a variety of material applicable to the management of products.The ...

Diameter: 4 mm - 24 mm
Operating pressure: 0 bar - 50 bar

... SAE AS 71051:1999 Commprise fitting sealing effect nested perfect,with easy to install,compact appearance of the characteristics of a variety of material applicable to the management of products.The ...

We are largest manufacturer and Exporter of Brass Glass Bracket and many types of Brass Mirror Cap. We have wide range available like Shelf Button Bat, Brass Round Mirror Cap, Brass Square Mirror Cap, Brass Swastik Mirror Cap, Brass Triangle ...

Diameter: 4 mm - 14 mm
Operating pressure: 18 bar

... bottom of the fitting, the stainless steel collet grips onto it and the tube is held captive. It is then enough to press on the release ring to set the tube free from the fitting. Technopolymer Push-in ...

Diameter: 3 mm - 6 mm
Operating pressure: 10 bar

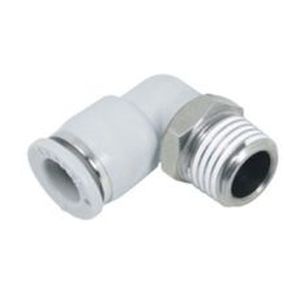

... PC-C series of compact one touch fittings, the volume is 40% less and outside diameter is 20% less. Compact one touch fittings are specially designed for pneumatic installations ...

Diameter: 3 mm - 6 mm
Operating pressure: 10 bar

Compact ( miniature ) one touch fittings are the smallest one touch fittings ( pneumatic fittings, one touch tube fittings ) in the ...

Diameter: 3 mm - 6 mm
Operating pressure: 10 bar

Compact ( miniature ) one touch fittings are the smallest one touch fittings (pneumatic fittings, one touch tube fittings ) in the world. ...

Diameter: 6 mm - 16 mm
Operating pressure: 350 bar - 400 bar

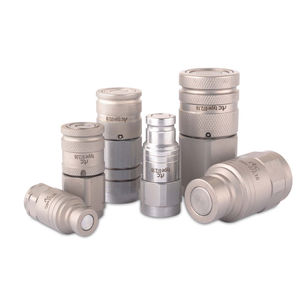

Using Area - On hydraulic oil circuits - Hydraulic test units - Injection moulding industries / core pullers

Diameter: 3, 5 mm
Operating pressure: 0 bar - 100 bar

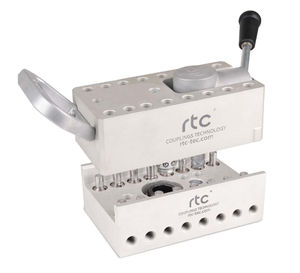

Specification Connectiıng and disconnecting the circuits in one operation for quick mold change 2 different sizes (Ø3, Ø5) Copmact design Non spill Applications Aluminium die casting Test units Plastics industry / caskades

Diameter: 8, 10 mm
Operating pressure: 0 bar - 200 bar

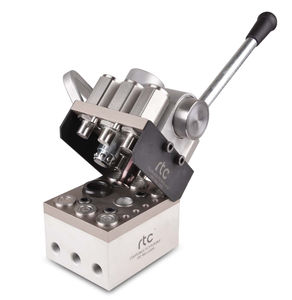

Specification Connectiıng and disconnecting the circuits in one operation for quick mold change 2 different sizes (Ø8, Ø10) Compact design Non spill Code syst Applications Aluminium die casting Test units Plastics ...

Diameter: 11 mm
Operating pressure: 40 bar

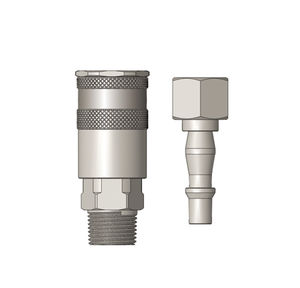

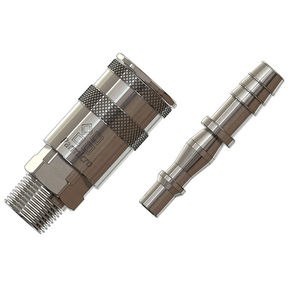

... position, thus the drop in pressure are reduced and it does not affect the pistol’s flow. This coupling is robust, light and compact and it exists various dimensions and connections. Reduces muscle strain caused by ...

Diameter: 0.13 in - 2 in
Operating pressure: 0 psi - 6,000 psi

... Tapered thread fittings offers a compact size for efficiency and have a high temperature tolerance. • Straight thread fittings have unlimited reusability, an elastomeric seal and no thread ...

Diameter: 1.3, 1.58, 0.93, 1.26 in
Operating pressure: 0 psi - 5,080 psi

... systems application flexibility and ease of maintenance. A patented fabrication process offers Parker Stratoflex HRUs with a compact, robust design for improved integration in OEM fluid systems. APPLICATIONS: Parker ...

Diameter: 2 mm - 16 mm
Operating pressure: 0 Pa - 100,000 Pa

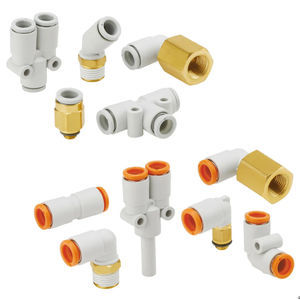

One-touch Fittings Series KQ2 Updated Sep-16 Oval type release button added [New] Possible to use in vacuum to -100 kPa. Improved tube insertion/removal Insertion force: Max. 30% reduction Removal force: Max. 20% ...

Diameter: 3 mm - 16 mm
Operating pressure: 20, 30 bar

The LF 3000 range of durable plastic fittings is specially designed with a contemporary and compact built for pneumatic installations. Its features include a vacuum capability of 28" Hg, working temperature ...
