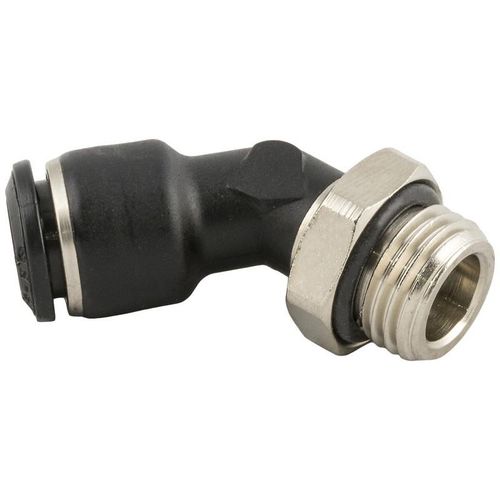

Technopolymer fitting 55175 series
for compressed airfor vacuumpush-in

technopolymer fitting
technopolymer fitting
technopolymer fitting
Add to favorites
Compare this product


Characteristics

Applications
for compressed air, for vacuum
Attachment
push-in
Configuration
45° angle
Material
technopolymer, nickel-plated brass
Gender
male
Other characteristics
compact, orientable
Diameter

4 mm, 6 mm, 8 mm, 10 mm, 12 mm (0.157 in)

Operating pressure

Min.: -0.99 bar (-14.36 psi)

Max.: 20 bar (290.08 psi)

Description

45° ORIENTING ELBOW MALE ADAPTOR (PARALLEL) The 55.000 - 56000 serie came up to answer the most estreme demands of pneumatic automation. It is a line in technopolymer , lighter and more compact which offers to demanding customers high performances. Wide Range ø 2 - 14 mm. Main advantages - Quick connection and disconnection - Full Flow and Vacuum resistant tank to special shaped seals - 3 threads available, BSPP, BSPT (universal short) & Metric - Lighter and More compact - Specific configurations to satisfy the advanced robotics - Silicon Free
