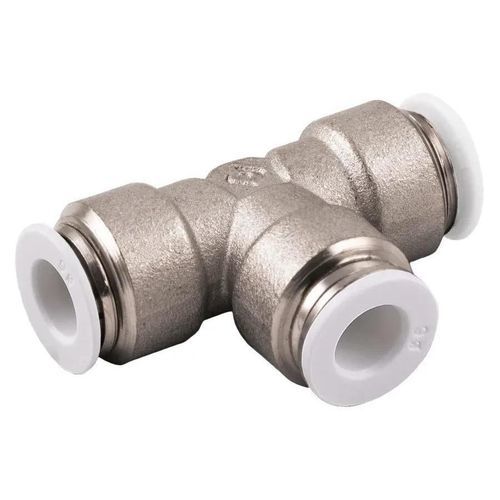

Hydraulic fitting 70230

for vacuumpush-to-lockthreaded

The 70.000 serie is NSF 169 certified to comply the<br>food norm.<br>The line is in brass with Food Grade coating.<br>In combination with our FEP tubes is the most<br>demanded solution for the Food & Beverage market.<br>Thanks to the special coating it can be used also in<br>agressive enviroment.<br>Main advantages<br>- NSF 169<br>- Quick connection and disconnection<br>- Full Flow and Vacuum resistant tank to special<br>shaped seals<br>- Thread BSPP & Metric<br>- Large range to comply food norms<br>- Silicon Free<br>Applications<br>- Diary<br>- Coffee Machine, Vending<br>- Food & Beverage<br>- Medical<br>- Vacuum<br><br>Component Parts and Materials<br>1 Nickel-plated brass Body Food Grade<br>2 PPSU Collet *<br>3 Nickel-plated brass capsule<br>4 Steel AISI 301 Clamping washer<br>5 PPSU positioning ring<br>6 Food FKM Molded seal<br>7 Food FKM Thread packing<br>8 Base Threaded Nickel Plated Brass Food Grade<br>9 Seeger<br>10 Food FKM seal<br><br>Connection Tubes<br>Plastic tubes:<br>PA6, PA11, PA12, Polyethylene, *Polyurethane, PTFE, FEP.<br>*Use from 90 to 98 Shore, for maximum performance is recommended<br>98 Shore A.<br><br>Threads<br>Parallel gas in conformity with ISO 228 Class A.<br><br>Advantages<br>1 The washer is made in stainless steel ensures the perfect<br>tube clamping with every Kinds of materials without<br>damage the surface.<br>The connection between the tube and the fitting<br>ensure a total tightness even in severe conditions such<br>as impact and vibrations.<br>2 The particular geometric shape of the seal ensure the<br>perfect tightness even with vacuum.<br>3 All of threads from this range have been equipped<br>with tightening parts which allow the direct assembly<br>of the fittings, reducing the installation time.<br>4 All the straight fittings can be assembled also with<br>Allen wrench and it is possible to use them<br>in reduced spaces.<br>5 Orienting fitting with safety ring Inside.<br>Improved durability to the rotation and traction.<br>
