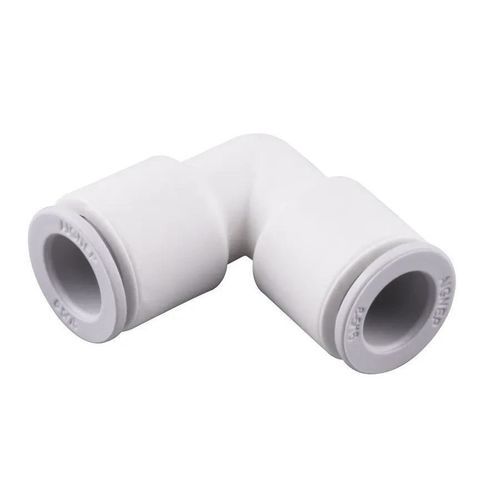

Hydraulic fitting 54130

for vacuumpush-inpush-to-lock

With the SPRINGFIT Series Aignep, in line with the<br>continuous food sector regulation developments,<br>offers a range of products in compliance with<br>1935/2004/EC. The fittings’ bodies are made of a<br>technopolymer that combines the food compatibility<br>with the resistance to temperatures as high as +80°C.<br>Gaskets are made of food-grade EPDM.<br>Main advantages<br>- Compliance with 1935/2004/CE<br>- Quick connection and disconnection<br>- Full Flow and Vacuum resistant<br>- Light weight<br>- No pumping-effect<br>- Large range<br>- Silicon Free<br>Applications<br>- Diary<br>- Coffee Machines, Vending<br>- Food & Beverage<br>- Water treatment<br>- Medical<br>- Vacuum<br><br>Component Parts and Materials<br>1 Food-grade technopolymer body<br>2 Food-grade technopolymer collet<br>3 Food-grade technopolymer capsule<br><br>Pressures - Temperatures<br>Pressures and temperatures of the different diameters of the<br>SPRINGFIT line®<br>Temperatures<br>-10 °C / +80 °C<br>4 AISI 301 Steel gripping ring<br>5 Food-grade technopolymer positioning ring<br>6 Food-grade EPDM moulded seal<br>7 Food-grade EPDM O-ring<br>8 Food-grade technopolymer threaded adaptor<br>
