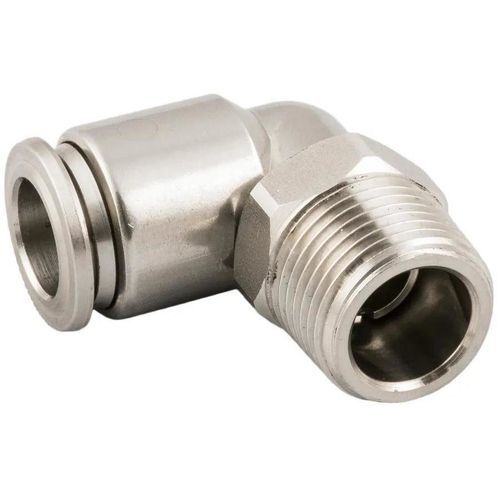

Vacuum fitting 60110Xfor chemicalspush-in90° angle
Add to favorites
Compare this product
Characteristics
- Applications
- for chemicals, for vacuum
- Attachment
- push-in
- Configuration
- 90° angle
- Norms
- ISO, BSP, BSPT
- Material
- stainless steel
- Gender
- male
- Other characteristics
- high-flow, vacuum, quick-disconnect
- Diameter
Max.: 12 mm
(0.472 in)Min.: 4 mm
(0.157 in)- Operating pressure
Max.: 20 bar
(290.08 psi)Min.: -0.99 bar
(-14.36 psi)
Description
The 60000 serie is fully made of stainless steel AISI 316L.<br>It has been developed to drive corrosive fluids or to be<br>used in aggressive environments. It is ideal for direct<br>contact with food fluids.<br>This line can be used also in salty environment and on<br>machines that need frequent washing with aggressive<br>detergents.<br>Serie certified NSF 169 and conformed to NSF 61 & NSF<br>372 standards.<br>Main advantages<br>- Quick connection and disconnection<br>- Full Flow and Vacuum resistant tank to special<br>shaped seals<br>- 3 threads available, BSPP, BSPT (universal short)<br>& Metric<br>- Full stainless steel AISI 316L<br>- Food&Beverage compatible<br>- Silicon Free<br>Applications<br>- Automation with Washing<br>- Farming, Mining<br>- Chemical, Petrolchemical, Pharmaceutical<br>- Medical, Life&Sciences<br>- Vacuum<br>
Catalogs
No catalogs are available for this product.
See all of AIGNEP‘s catalogsOther AIGNEP products
