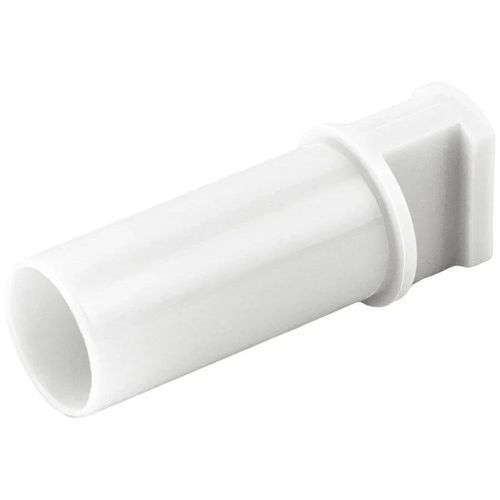

Round plug 54610

non-threaded

With the SPRINGFIT Series Aignep, in line with the
continuous food sector regulation developments,
offers a range of products in compliance with
1935/2004/EC. The fittings’ bodies are made of a
technopolymer that combines the food compatibility
with the resistance to temperatures as high as +80°C.
Gaskets are made of food-grade EPDM.
Main advantages
- Compliance with 1935/2004/CE
- Quick connection and disconnection
- Full Flow and Vacuum resistant
- Light weight
- No pumping-effect
- Large range
- Silicon Free
Applications
- Diary
- Coffee Machines, Vending
- Food & Beverage
- Water treatment
- Medical
- Vacuum

Component Parts and Materials
1 Food-grade technopolymer body
2 Food-grade technopolymer collet
3 Food-grade technopolymer capsule

Pressures - Temperatures
Pressures and temperatures of the different diameters of the
SPRINGFIT line®
Temperatures
-10 °C / +80 °C
4 AISI 301 Steel gripping ring
5 Food-grade technopolymer positioning ring
6 Food-grade EPDM moulded seal
7 Food-grade EPDM O-ring
8 Food-grade technopolymer threaded adaptor
