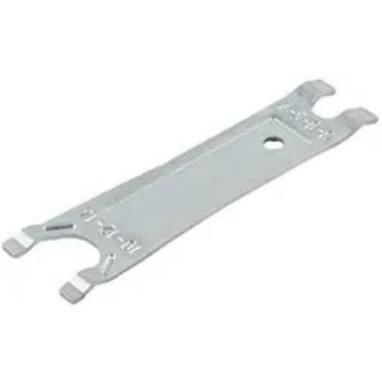

Disassembly tool 50990

The 53000X serie is the lastest development in the
Food&Beverage sector. Fittings are certified to NSF 169
standards and to 1935/2004/CE & Italian DM 174.
The bodies of the fittings are made in PPSU, a material
which combines food compatibility and resistance to
high temperature up to +140°C. The threads are made
in stainless steel AISI 316L. Seals are FKM food-grade.
Main advantages
- Certified NSF 169, 1935/2004/CE, DM 174
- Quick connection and disconnection
- Full Flow and Vacuum resistant
- Light weight
- Low-cost alternative to stainless steel
- Large range
- Silicon Free
Applications
- Diary
- Coffee Machines, Vending
- Food & Beverage
- Medical
- Vacuum

Component Parts and Materials
1 PPSU Body
2 PPSU Collet
3 AISI 316 L Steel Capsule
4 Steel clamping washer
5 Positioning ring PPSU
6 Molded seal in FKM FOOD
7 O-Ring seal in FKM Food
8 Base Threaded AISI 316 L Steel

Connection Tubes
Plastic tubes:
PA6, PA11, PA12, Polyethylene, *Polyurethane, PTFE, FEP.
*Use from 90 to 98 Shore, for maximum performance is recommended
98 Shore A.

Threads
Parallel gas in conformity with ISO 228 Class A.

Advantages
1 The washer is made in stainless steel ensures the
perfect tube clamping with every Kinds of materials
without damage the surface.
The connection between the tube and the fitting
ensure a total tightness even in severe conditions such as
impact and vibrations.
2 The particular geometric shape of the seal ensure the
perfect tightness even with vacuum.
3 All of threads from this range have been equipped
with tightening parts which allow the direct assembly of
the fittings, reducing the installation time.
