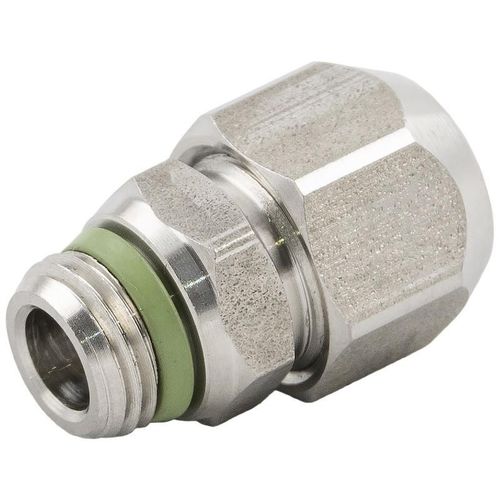

Hydraulic fitting 61005 seriesfor compressed airscrew-inISO
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic, for compressed air
- Attachment
- screw-in
- Norms
- ISO, DIN
- Material
- stainless steel
- Gender
- male
- Diameter
4 mm, 6 mm, 8 mm, 10 mm
(0.157 in, 0.236 in, 0.315 in, 0.394 in)- Operating pressure
Max.: 15 bar
(217.56 psi)Min.: -0.99 bar
(-14.36 psi)
Description
Connection Tubes Tube in general.
PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP.
Temperature Minimum Temperature -15 °C
Maximum Temperature +225°C
Threads Tapered gas in conformity with ISO 7.1, BS 21, DIN 2999.
Parallel gas in conformity with ISO 228 Classe A.
"Short" tapered trhead.
Working Pressures Minimum Pressure: -0.99 bar (-0.099 Mpa)
Maximum Pressure: 15 bar (1.5 Mpa)
Fluidi Compatibili Compressed air - Vacuum - Water.
Fluid for food and chemical industries compatible with fitting components.
Meausure Tube: da 6/4 a 10/8;
Threads: da 1/8 a 3/8.
