Pneumatic fitting

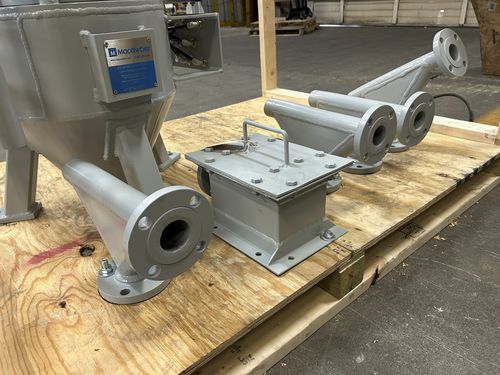

45° angle90° angle30° angle

The standard bend fitting for certain dry granular materials is unique to the Denseveyor® system and comes in 30, 45, 60, 75, and 90 degrees. It is a compact, easily installed fitting for redirecting the pipe system. The design overcomes the problem of wear occurring on long radius bends while ensuring a smooth flow of material into the new direction without causing blockage problems. The fitting’s compact size ensures easy pipework erection and simplified planning for pipework supports and routing. The bend fitting can be mounted in any position. • Standard #150 ANSI B16.5 flanges • Available in 30, 45, 60 and 90 degrees • Custom sizes available upon request • Standard A53 schedule 40 grade 516 • Available in 304/316 stainless steel, aluminum, galvanized, and others • Fully assembled and tested prior to shipment • Manufactured in Maryville, TN USA • Global customer support for service and spare parts
