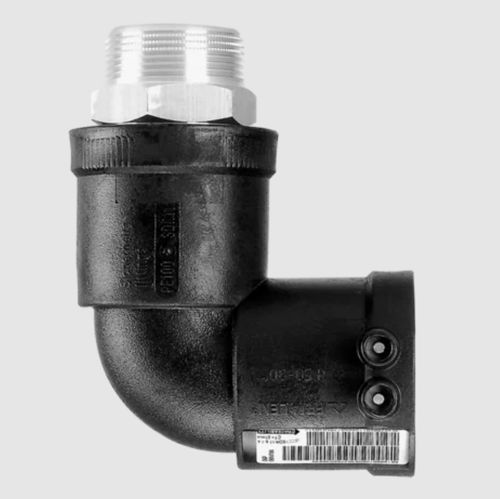

Hydraulic fitting WUN 90

threaded90° anglePE

Transition Elbows 90° HD-PE/Brass with male thread Compact transition fitting. HD-PE end with exposed heating coils for optimal heat transfer, large insertion depth, wide fusion zone plus cold zones at the end and in the transition area to prevent the flow of molten material for use without holding devices. Brass end permanently anchored in the HD-PE. Cannot be released or rotated. Self sealing patented sealing geometry without elastomer seal. For use in water systems. Standard: Brass. Gunmetal on request. Other thread sizes on request Areas of Application FRIALEN-Transition Elbows WUN 90° are threaded joints as an adaptor from a metal pipe with internal thread to a HD-PE pipe. Joint on the part of HD-PE by FRIALEN-Coupler. Assembly Instructions The threaded component must be held with a spanner to prevent it twisting in the HD-PE component. The fusion of the HD-PE side takes place by FRIALEN-fusing – leakproof and longitudinally strong. The installation of the brass and the HD-PE side has to be prepared according to the general installation instructions (see ”Transition Fittings with threaded connection” in ”Assembly Instructions” for ”FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide skin and cleaning the pipe ends. Good reasons for using the FRIALEN-Transition Elbows WUN 90°: Compact construction HD-PE side with exposed heating element for optimal heat transfer Cold zones at the end to prevent the flow of molten material No holding clamps required Large insertion depth, extra wide fusion zones Brass end permanently anchored in the HD-PE and will not distort
