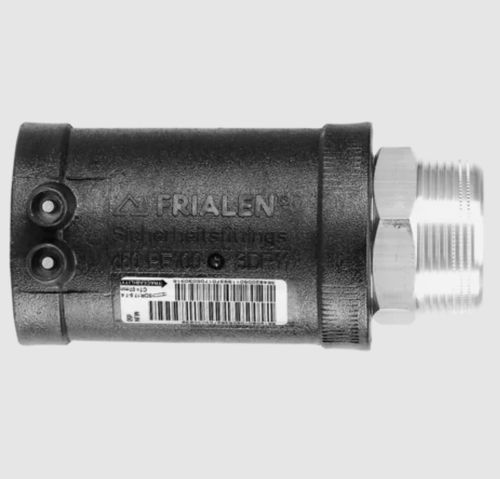

Hydraulic fitting MUN V2A

screw-inHDPEPE

Transition fitting Water Material; PE 100 and V2A [EN 10278 ; EN 10088-3 - 1.4305 -X8CrNiS18-9, thread according to EN 10226-1] Safety technology Note: V2A side is anchored in the PE so that it cannot be rotated. Self-sealing, patented sealing geometry without elastomeric seal for utilisation in water areas. Other thread dimensions available on request. Areas of Application FRIALEN-Transition Fittings MUN-V2A are threaded joints as an adaptor from a metal pipe with internal thread to a HD-PE pipe. Joint on the part of HDPE by FRIALEN-Coupler. The threaded joint is made of stainless steel (Material St. 1.4305 / X8CrNiS18-9). Assembly Instructions During assembly, only a spanner applied to the provided metal hexagon must be used to screw the component into its metal counterpart. The fusion of the HD-PE side takes place by FRIALEN-fusing – leakproof and longitudinally strong. The installation of the stainless steel and the HD-PE side has to be prepared according to the general installation instructions (see ”Transition Fittings with threaded connection” in ”Assembly Instructions” for ”FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide skin and cleaning the pipe ends. Good reasons for using the FRIALEN-Transition Fittings MUN-V2A: Compact construction HD-PE side with exposed heating element for optimal heat transfer Cold zones at the end to prevent the flow of molten material No holding clamps required Large insertion depth, extra wide fusion zones Stainless steel end permanently anchored in the HD-PE and will not distort Self sealing patented sealing geometry without elastomer seal
