Hydraulic fitting TA

for gassocketT

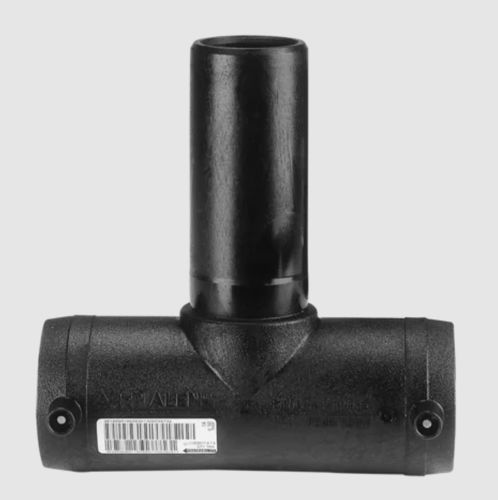

T-piece TA SDR 11 with spigot Spigot Safety technology DVGW test mark: DV-8601AU2248 and DV-8606AU2249 Areas of Application The FRIALEN-T pieces TA are used for pipe outlets of HD-PE pipelines. Assembly Instructions The fusion of the pipe ends with the FRIALEN-TA takes place by FRIALEN-fusing – leakproof and longitudinally strong. The pipe ends are prepared (removing the oxide layer/cleaning) according to the general installation instructions (see “Assembly Instructions” for “FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). Good reasons for using the FRIALEN-TA: Large coupler depth for ease of pipe guiding (no holding clamps required) At dim. up to d 63, Length of outlet spigot dimensioned for two fusion operations Extra wide fusion zones Maximum stability through great wall thickness Cold zones at the front side and in the middle of the coupler Exposed heating coil for direct heat transmission to the pipe Small annular gap for build-up of optimum joining pressure in the fusion zone Touch proof electric contacts Durable batch marking Individually wrapped for dirt protection Additional barcode for tracing back the fitting (Traceability-Coding)
