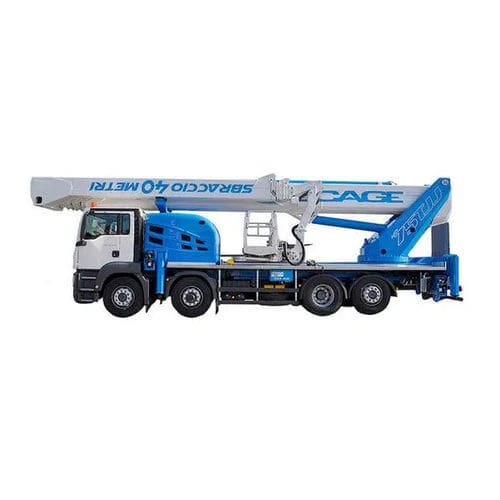

Truck-mounted telescopic boom lift ForSte 75TJJ

hydraulicelectricoutdoor

75TJJ is an aerial work platform with a jib that can be installed on trucks with p.t.t. minimum from 32 tons. This model is provided with a secondary boom that allows the equipment to perform maneuvers that would not be possible with a basket with only one JIB It reaches a working height of 75m and a horizontal reach of 40m, in addition has a large load capacity of 600 kg (6 operators + material) This model is equipped as standard, on the platform controls, with an LCD screen (7 ″) that allows the operator to control different information such as: 2D work area, limiter status, stabilizers status, etc. The 75TJJ is equipped as standard with a multi-zone stabilization system that allows the operator to choose between different options depending on the available space for the truck; In addition, the rear stabilizing crossmembers have 2 hydraulic extensions that increase the stabilization area and, therefore, the maximum performance of the equipment. • Extendable aluminum basket with dimensions 2300/3600 x900x1100 mm • SOCAGE convertible basket possibility (Eternit) • Basket rotation 360° • Rotation turret 700° • 2 ° Jib 180 ° manual rotation • Possibility of winch on removable JIB • Automatic stabilization • Partially stabilized work areas • Auto lock • Basket control station with console on Socage design including joystick and 7 “LCD display with real-time information • Intercom with headphones for basket-ground communication • Main and auxiliary motor start / stop control from the basket • Multifunction radio remote control for emergency control of the aerial part from the ground and stabilization
