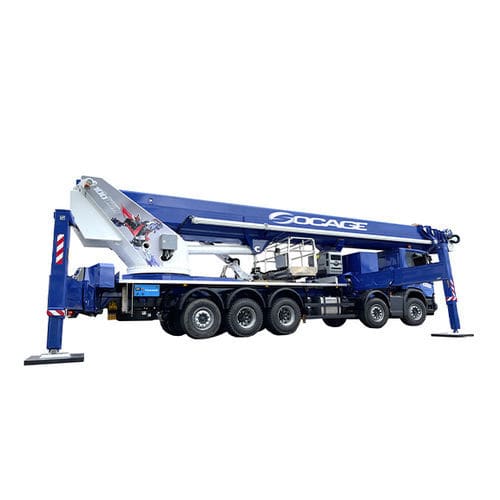

Truck-mounted telescopic boom lift ForSte 100TJJ

hydraulicoutdoor

now Socage is able to reach new goals at high altitudes, taking on challenges up to a height of 100 meters. The forSte 100TJJ is a truck-mounted telescopic aerial platform with a JIB that can be installed on trucks with a minimum 52 tons GVW. This model is equipped with a second jib that allows to perform maneuvers that would not be possible with a basket with a single JIB. It is able to reach a maximum working height of 100m and a side reach of 43m with 350kg, with a maximum loading capacity of 600kg (6 operators + tools). As standard, this model is equipped with an LCD display (7″) that allows the operator to control various information of the equipment, including: the 2D working area, the status of the limiter, the status of the outriggers, etc. The 100TJJ Truck Mounted Telescopic Platform is also equipped with the multi-zone stabilization system that allows the operator to choose from a variety of options depending on the space available for the vehicle. The rear crossbars are composed of 2 hydraulic extensions that increase the stabilization area and therefore the maximum performance of the equipment. • Extendable aluminum basket with dimensions 2300/3600x900x1100 mm • SOCAGE convertible basket possibility (Eternit) • Basket rotation 180°+180° • Rotation turret 700° • Automatic stabilization • Partially stabilized work areas • Basket control station with console on Socage design including joystick and 7 “LCD display with real-time • information • Intercom with headphones for basket-ground communication • Main and auxiliary motor start / stop control from the basket
