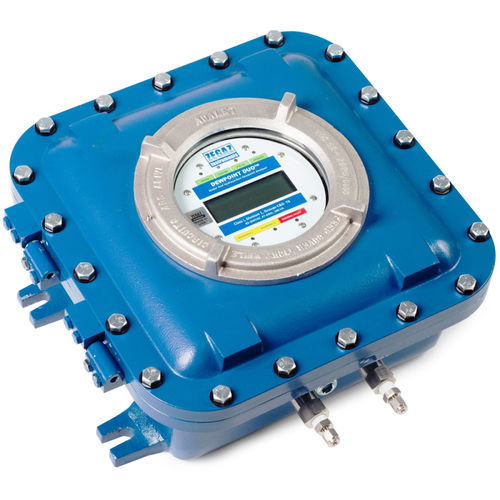

Gas analyzer HCD5000hydrocarbonprocessin-line
Add to favorites
Compare this product
Characteristics
- Measured entity
- gas, hydrocarbon
- Application domain
- process
- Configuration
- in-line
- Mode of use
- automatic
- Technology
- infrared, spectrometer
Description
Based on infrared spectroscopic technology, the HCD5000 hydrocarbon dew point analyzer distinguishes between hydrocarbon and water dew points. It provides extremely accurate, calculation-free measurements.
Technical Specifications
Maximum operating pressure
135 barg (1958 psig)
Maximum temperature
-20°C to +60°C
Flow
0.3 - 1.5 SLM
Measurement range
70°C below ambient temperature
Measurement time
2 - 12 minutes
Dew point min and max detectable
+55°C
5° below ambient temperature
Dew point accuracy
±0.5 ⁰C
Certification
Hazardous area certification
Features
Dew point analyzer
Cooled mirror method
CEIRS™ infrared spectroscopy
Gas sample
Fixed system
Real, automatic, calculation-free measurement
Hydrocarbons
Catalogs
HCD5000 Dewpoint analyzer
2 Pages
