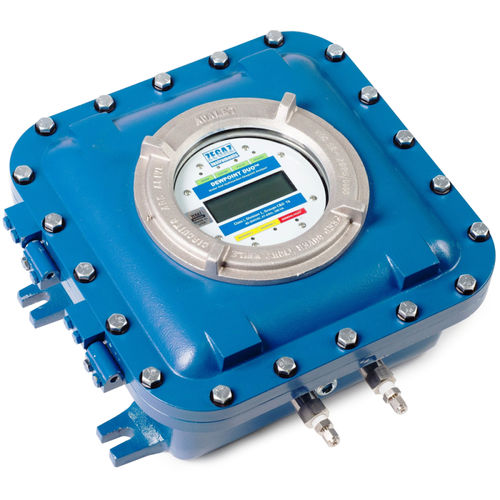

Gas analyzer WDP5000processonlineautomatic
Add to favorites
Compare this product
Characteristics
- Measured entity
- gas
- Application domain
- process
- Configuration
- online
- Mode of use
- automatic
- Technology
- infrared
Description
The WDP5000 online water dew point analyzer measures the actual water dew point at process pressure and indicates the water content, without any calculation.
Technical Specifications
Maximum operating pressure
135 barg (1958 psig)
Maximum temperature
-20°C to +60°C
Flow
0.3 - 1.5 SLM
Measurement range
70°C below ambient temperature
Measurement time
2 - 12 minutes
Dew point min and max detectable
+55°C
5° below ambient temperature
Dew point accuracy
±0.5 ⁰C
Certification
Hazardous area certification
Features
Dew point analyzer
Cooled mirror method
CEIRS™ infrared spectroscopy
Gas sample
Fixed system
Real, automatic, calculation-free measurement
Water
Catalogs
WDP5000 Dewpoint analyzer
2 Pages
