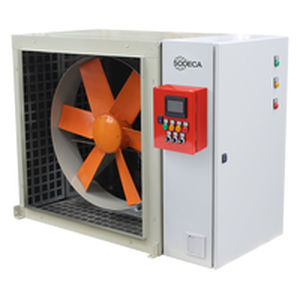

Room pressurization system KIT BOXPDS SMART series

Pressurisation equipment for evacuation routes with advanced control, designed according to the European standard EN 12101-6 Fire evacutaion route pressurisation systems designed in accordance with the European standard EN 12101-6. The KIT BOXPDS SMART automatically regulates the airflow and is able to maintain the 50 Pa of overpressure even in the presence of leaks in the installation. The system is able to maintain the overpressure (Pressure criteria) and reach the 90% of the required flow rate within 3 seconds after opening or closing a door (Airflow criteria). Including test certification for dynamic performance, electromagnetic compatibility, environmental resistance and IP protection degree. Utility model: ES 1 226 660 U. KIT BOXPDS SMART • Device with advanced control, consisting of a BOXPDS SMART control panel, an external control panel, a CJHCH ventilation unit and a DAMPER BOX SMART with integrated optical smoke detector. BOXPDS SMART • Variable frequency drive. • High precision differential pressure probe. • Electrical panel with magneto thermal protections and general power supply failure indication. • Electronic control for alarm management, maintenance, ModBUS RTU port for connection to BMS (Building Management Systems) and control by DAMPER BOX SMART. • Certified power supply with batteries to ensure power supply to control equipment in the event of a power failure. • Quick set up for intuitive configuration. • Possibility of controlling 3 motorised air intakes of the DAMPER BOX SMART, HATCH or WALL type.
