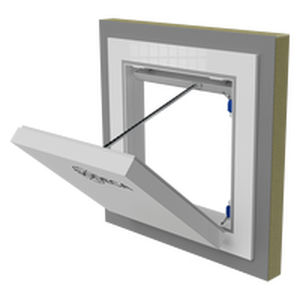

Smoke evacuation damper FRIDGE/FLAP

Product overview
F400 motorised flaps for smoke evacuation in case of fire. Designed for installation in cold rooms and freezing chambers with high thermal performance and perimeter sealing. Mechanical smoke extractor accessory homologated according to EN 12101-3.

Characteristics

• Approved as a mechanical smoke extractor accessory according to EN 12101-3.
• Suitable for cold rooms (>4 ºC) and freezing rooms (4 ºC to -28 ºC).
• Injected polyurethane insulation, Class B according to UNE-EN 13501.
• Sliding panel available in two thicknesses: 90 mm and 120 mm.
• Aluminium profile with thermal break.
• Double air-chamber perimeter seal.
• 40 W/m heating element to prevent freezing of the sealing joint.
• Position indicators.
• Manual opening system (Utility model ES 1 259 375 U).
• Can be installed horizontally or vertically.

Actuator

• Reliability: >20,000 double cycles.
• Supply voltage: 230 V AC 50/60 Hz.

Finish

• Anti-corrosive finish on extruded aluminium.
• Standard colour: RAL 9010.
• Supplied with trim covers to finish cut-outs in cold-room panels; adaptable to any panel thickness (specify at order).

On request

• Actuator with 24 V DC supply voltage.

Technical specifications

• Application: Smoke evacuation in cold rooms and freezing chambers.
• Standards / Approvals: EN 12101-3 (mechanical smoke extractor accessory); insulation classification UNE-EN 13501 (Class B).
• Operating temperature range: from -28 ºC up to above 4 ºC.
• Panel sliding thickness options: 90 mm, 120 mm.
• Heating element: 40 W/m (prevents sealing joint freezing).
• Actuator cycles: >20,000 double cycles.
• Standard actuator supply voltage: 230 V AC 50/60 Hz; optional 24 V DC on request.
• Construction materials: extruded aluminium with anti-corrosive finish; thermal break in profile.
• Sealing: double air-chamber perimeter seal.
• Installation: horizontal or vertical.
• Colour: RAL 9010 standard.
