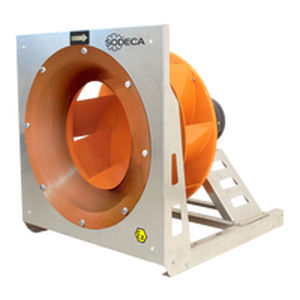

Centrifugal fan PF/ATEX seriesextraction230VAC400 VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- extraction
- Supply voltage
- 230VAC, 400 VAC, 690 V
- Drive mechanism
- electrically-powered
- Material
- galvanized steel
- Other characteristics
- ATEX, anti-corrosion, vertical, IP55, explosion-proof, plug, backward curved
- Air flow
3,000 m³/h, 3,500 m³/h, 3,880 m³/h, 4,420 m³/h, 4,500 m³/h
(105,944 ft³/h, 123,601.334 ft³/h, 137,020.907 ft³/h, 156,090.827 ft³/h, 158,916 ft³/h)- Rotational speed
2,710 rpm, 2,770 rpm, 2,800 rpm, 2,820 rpm, 2,850 rpm
(17,027 rad.min-1, 17,404 rad.min-1, 17,593 rad.min-1, 17,719 rad.min-1, 17,907 rad.min-1)
Description
High efficiency centrifugal fans (Plug Fan type) indicated for air treatment applications. ATEX 2G or 2D certification with flameproof Ex db, increased safety Ex eb or dust ignition proof Ex tb motor to work in explosive gas or dust atmospheres.
Fan:
• Galvanised sheet steel structure.
• Backward curved impeller made of sheet steel.
• Non-sparking inlet ring made of copper.
• Complete with a pressure measurement connection point for optional automatic flow and pressure control.
• Vertical execution is not available for sizes 1871 and 2180.
• Frequency converter is required for duties with different rpm than the motor nominal ones.
• Standard marking with flameproof motor (Ex db): II 2G Ex h IIB T4 Gb.
• Standard marking with increased safety motor (Ex eb): II 2G Ex h IIB T3 Gb.
• Standard marking with motor for dust ignition proof (Ex tb): II 2D Ex h IIIC T135 ºC Db.
Motor:
• Class F motors with ball bearings and ATEX certification flameproof Ex db, increased safety Ex eb or dust ignition proof Ex tb.
• Motors with built-in PTC.
• Three-phase 230/400 V (up to 4 kW) and 400/690 V (powers greater than 4 kW).
• Working temperature: -20 ºC +40 ºC.
Finish:
• Galvanised steel sheet.
On request:
• Special windings for different voltages and frequencies.
• ATEX construction for flammable dust.
• ATEX fan with greater protection than the standard marking.
