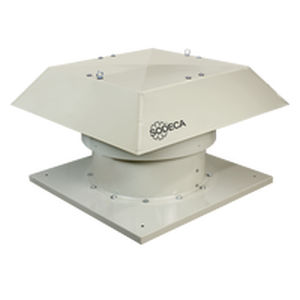

Extractor HTMF/IE5

Summary
Multifunctional roof extractor certified F400 (400 ºC/2h) with ultra-high efficiency IE5 motor, designed for smoke evacuation and operation in fire-risk zones in industrial buildings and similar facilities.

Fan

• Support base in painted galvanised steel sheet.
• Adjustable cast aluminium impeller.
• Protection contact grid according to UNE-EN ISO 12499.
• Cap in painted galvanised steel sheet, with natural air outlet.
• Approved in accordance with EN 12101-3, certification no.: 2797 CPR 840443 (F400).

Motor

• Class H motors for continuous use (S1) and emergency use (S2), with ball bearings, IP55 protection, single speed.
• IE5 ultra-high efficiency motors.
• Three-phase 230/400 V 50 Hz (up to 3 kW) and 400/690 V 50 Hz (powers greater than 3 kW).
• Maximum conveyed air temperature: Service S1 -25 ºC to +40 ºC continuously; suitable for hot climates up to 50 ºC. Service S2 400 ºC/2h (emergency).

Finish

• Anti-corrosive finish in polyester resin polymerised at 190 ºC, after phosphate-free nanotechnology degreasing treatment.

Applications

• Designed for smoke evacuation from roofs and for operation immersed in fire-risk atmospheres in industrial buildings, warehouses and similar facilities.

Technical specifications

• Product type: Multifunctional roof extractor for smoke evacuation.
• Model: HTMF/IE5
• Temperature classification: F400 (400 ºC/2h) certified to EN 12101-3.
• Motor efficiency class: IE5.
• Motor protection: IP55, ball bearings, Class H insulation.
• Speeds: Single speed.
• Supply voltages: 230/400 V 50 Hz (≤3 kW); 400/690 V 50 Hz (>3 kW).
• Operational temperature ranges: S1 -25 ºC to +40 ºC (continuous); up to 50 ºC for hot climates. S2 400 ºC/2h (emergency).
• Construction materials: Painted galvanised steel sheet base and cap; cast aluminium impeller.
• Protection: Contact protection grid per UNE-EN ISO 12499.
• Surface treatment: Polyester resin polymerised at 190 ºC after phosphate-free nanotechnology degreasing.
• Certification number: 2797 CPR 840443 (F400).
• Intended application: Smoke evacuation in industrial buildings and similar facilities.
• Internal reference code on page: 1000001330.
