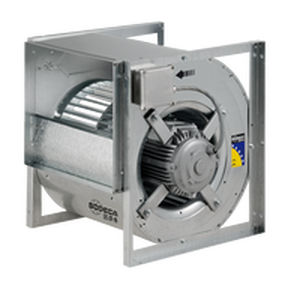

Centrifugal fan CBDT seriesextractor230VAC400VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- extractor
- Supply voltage
- 230VAC, 400VAC, 690 V
- Drive mechanism
- electrically-powered
- Material
- galvanised steel
- Other characteristics
- direct-drive, double-inlet, IP55, corrosion-resistant
- Air flow
Max.: 11,800 m³/h
(416,713.067 ft³/h)Min.: 3,000 m³/h
(105,944 ft³/h)- Rotational speed
Max.: 1,420 rpm
(8,922 rad.min-1)Min.: 920 rpm
(5,781 rad.min-1)- Noise level
Max.: 64 dB
Min.: 58 dB
Description
Double inlet centrifugal fans, direct drive, to work inside the fire zone 400 ºC/2h and 300 ºC/2h
400 ºC/2h double inlet centrifugal extractor fans with direct drive motors for immersed operation in fire risk zones, with the option of a single-phase motor.
Fan:
• Galvanised steel sheet casing.
• Forward curved impeller in galvanised sheet steel.
• External terminal box.
• Approved in accordance with standard EN 12101-3, with certificate no.: 0370-CPR-0580.
Motor:
• Class H motors for S1 continuous operation and S2 emergency use. With ball bearings, IP55 protection and 1 or 2 speeds, depending on model.
• Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (up to 3 kW) and 400/690 V 50 Hz (powers greater than 3 kW).
• Maximum temperature of air to be carried: S1 continuous operation -25 ºC +60 ºC, S2 operation 300 ºC/2h, 400 ºC/2h.
Finish:
• Galvanised steel sheet.
On request:
• Fans with circular outlet.
• Fans with vertical outlet.
