Visualization software ACCON‑EasyLog
monitoringdata acquisition and analysisdata acquisition

Visualization software - ACCON‑EasyLog - Softing Industrial Automation - monitoring / data acquisition and analysis / data acquisition
Visualization software - ACCON‑EasyLog - Softing Industrial Automation - monitoring / data acquisition and analysis / data acquisition
Add to favorites
Compare this product
Go to the Softing Industrial Automation website for more information

Characteristics

Function
analysis, monitoring, visualization, reporting, database, data acquisition, data acquisition and analysis, communications, data management, data collection
Applications
industrial, for production, for IPC
Type
Docker container
Operating system
Windows, 32/64-bit Windows system
Deployment mode
on-premise

Description

Overview
  • ACCON‑EasyLog is a modular PLC data logger software that reads and archives process values from Siemens S7 and LOGO! controllers.
  • Supports time‑controlled, event‑controlled and limit/tolerance‑triggered logging with graphical views for current and historical values.
  • Direct import of TIA Portal symbol exports (V18–V21) accelerates configuration.


Key features
  • Modular IN & OUT architecture to adapt functionality to project needs.
  • Fast data acquisition suitable for small to large-scale installations.

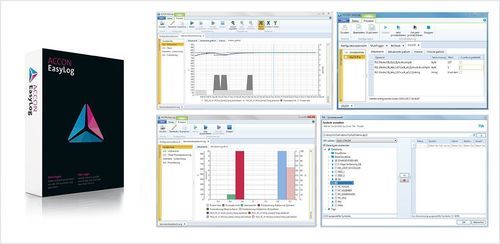

  • Provides bar and line/area charts for trend analysis and deviation detection.


Versatile Input & Output
  • Runs Softing’s edgeConnector or any Docker‑based application.
  • Supports in‑house and third‑party solutions; no vendor lock‑in (limited by hardware resources).
  • Communication via MPI, PROFIBUS, PPI and TCP/IP using ACCON‑NetLink adapters.


Flexible Storage & Analysis
  • Exports data as CSV files for Excel processing.
  • Saves to SQL databases (MS SQL, MySQL, PostgreSQL, MariaDB, Oracle) via ODBC.
  • Option to send archived data to Arburg ALS host system.


Scalable & Secure Operation
  • Default support for 32 PLCs (expandable to 128) and 256 variables per PLC (expandable to 1 024 or 4 096).
  • Data buffering if storage is temporarily unavailable; multiple configurations can run simultaneously.
  • Secure PG/PC and HMI communication; logging on limit exceedance or tolerance violations.


Technical Data
  • Product: ACCON‑EasyLog
  • Supported OS: Windows 10 (from v1809), Windows 11, Windows Server 2016, Windows Server 2022
  • Supported PLCs: Siemens S7‑200 / S7‑1200 / S7‑300 / S7‑400 / S7‑1500; LOGO! 0BA7 / 0BA8
  • Communication channels: MPI, PROFIBUS, PPI, TCP/IP (via ACCON‑NetLink‑PRO compact, ACCON‑NetLink‑USB compact, ACCON‑MPI‑Adapter)
  • Output formats: CSV, SQL databases (MS SQL, MySQL, PostgreSQL, MariaDB, Oracle), Arburg ALS
  • TIA Portal: symbol import supported (V18–V21)
  • Scalability: 32 PLCs (expandable to 128); variables per PLC: 256 (expandable to 1 024 or 4 096)
  • Hardware: from Intel i3 + 8 GB RAM (small configs) to Intel i7 + 32 GB RAM (large configs); 400 MB free disk space for software plus log storage


Order Information
  • Scope of delivery: installation package available for download; each package contains one IN & OUT module and the Base version of EasyLog.
  • Documentation: User Guide included in the installation package.


Licenses / Order Numbers
  • ACCON EasyLog Basic Win — 130001WUX — Update Rights: 131001WXW
  • ACCON EasyLog Var 1k — 130011WXX — Update Rights: 131011WXW
  • ACCON EasyLog Var 4k — 130012WXX — Update Rights: 131012WXW
  • ACCON EasyLog Konf 64 — 130021WXX — Update Rights: 131021WXW
  • ACCON EasyLog Konf 128 — 130022WXX — Update Rights: 131022WXW
  • ACCON EasyLog IN S7 classic — 130031WXX — Update Rights: 131031WXW
  • ACCON EasyLog IN S7 TIA — 130032WXX — Update Rights: 131032WXW
  • ACCON EasyLog OUT CSV — 130061WXX — Update Rights: 131061WXW
  • ACCON EasyLog OUT ALS — 130063WXX — Update Rights: 131063WXW
  • ACCON EasyLog OUT SQL — 130064WXX — Update Rights: 131064WXW
  • ACCON EasyLog OUT Grafik — 130091WXX — Update Rights: 131091WXW


Downloads
  • Datasheet (PDF)
  • Getting Started Guide (PDF)
  • User Manual (PDF)
  • ACCON‑EasyLog software package and drivers (V2.9.1.0)


Technical specifications
  • Product name: ACCON‑EasyLog
  • Manufacturer: Softing
  • Supported OS: Windows 10 (from v1809), Windows 11, Windows Server 2016, 2022
  • Supported PLCs: Siemens S7 family and LOGO! 0BA7/0BA8
  • Communication: MPI, PROFIBUS, PPI, TCP/IP via ACCON NetLink adapters
  • Storage/output: CSV, ODBC to MS SQL/MySQL/PostgreSQL/MariaDB/Oracle, Arburg ALS
  • TIA Portal: V18–V21 symbol import
  • Scalability and logging modes as listed above
  • Hardware requirements: Intel i3 + 8 GB RAM (small) to Intel i7 + 32 GB RAM (large); 400 MB for software + log storage

Catalogs

Exhibitions

Meet this supplier at the following exhibition(s):

Automation Expo 2026
Automation Expo 2026

22-25 Jul 2026 Mumbai (India) Stand J1A

  • More information
    All About Automation Zürich
    All About Automation Zürich

    26-27 Aug 2026 Zürich (Switzerland) Stand C05

  • More information
    See all exhibitions

    Other Softing Industrial Automation products

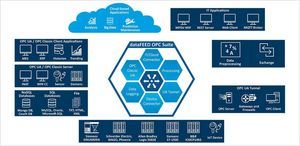

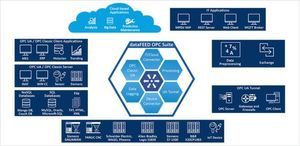

    OPC & OPC UA Software Platform
