Converter software dataFEED OPC Data Handler

OPC servermonitoringautomation

Overview

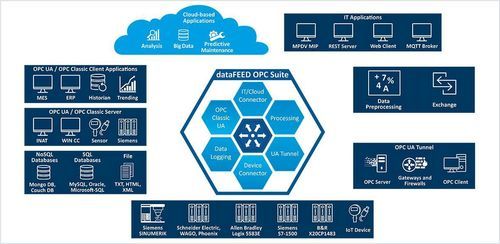

dataFEED OPC Data Handler is a component of dataFEED OPC Suite that centralizes OPC Classic communication with optional OPC UA and MQTT integration. It collects, stores and logs process data for industrial automation systems, supporting persistence in SQL (ODBC) and NoSQL (MongoDB, InfluxDB, CouchDB) databases and import/export of XML and CSV process files for Industry 4.0 workflows.

Comprehensive processing system

• Wizards for rapid database connection setup
• Storage of production data in NoSQL big data solutions (MongoDB, InfluxDB, CouchDB)
• Local buffering to protect data during database outages
• Functions for verification, proof and process analysis
• Suitable for process optimization workflows

Data exchange without additional components

• Application for direct data exchange between controllers
• Bridges different automation ecosystems (e.g. Siemens and Rockwell)
• Access to proprietary protocols
• Reduces need for gateways and complex OPC clients
• Unifies diverse communication structures into a single OPC namespace

Flexible logging in data files

• Support for multiple file formats (e.g. XML, CSV)
• Process data logging for later evaluation and quality tasks
• Stored data can be processed and analysed with standard tools
• Verification and documentation of implemented functions
• Integration of XML and CSV process files into OPC UA and MQTT based Industry 4.0 solutions

Order information
Scope of delivery: Software: dataFEED OPC Suite (download from Softing website)
License key: by e-mail or on USB dongle
Documentation: PDF manual and online help in English and German

Order numbers:
LRL-DY-134301 - dataFEED OPC Data Handler licence for dataFEED OPC Suite, Version V5.x or previous versions; includes dataFEED OPC Organizer Classic functionality
LRL-DY-134201 - dataFEED OPC Organizer UA licence for dataFEED OPC Suite; access from any number of OPC UA Clients and to 1 OPC UA Server; includes Organizer Classic functionality
LRL-DY-134401 - dataFEED OPC Server Extension license 50 for simultaneous access to up to 50 OPC UA/OPC servers and dataFEED OPC Tunnel servers
HUA-DD-130001 - USB hardware key for dataFEED OPC Suite (optional)

Technical specifications

• Supports OPC Classic and optional OPC UA; MQTT support for Industry 4.0 integration
• Database access: SQL via ODBC; NoSQL: MongoDB, CouchDB, InfluxDB
• Data logging to files with multiple format support
• Buffering and offline protection during database interruptions
• Wizards for quick database configuration
• Integration of XML and CSV process data via OPC UA and MQTT
• Unifies different automation communication structures into one OPC namespace
• Access to proprietary protocols and cross vendor controller exchange (e.g. Siemens and Rockwell)
• License delivery by e-mail or USB dongle; optional USB hardware key available
• Documentation available as PDF manual and online help in English and German
