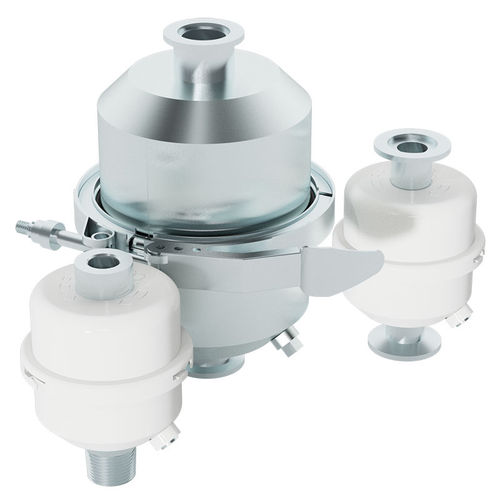

Oil mist filter EE series

cartridgecoalescingfor vacuum pumps

Features Captures oil fog, mist or aerosol from discharge of oil sealed vacuum pumps Back pressure valve designed to release element at 0.5 bar (7.35 PSI) differential for pump safety Seamless drawn housings Corrosive resistant white powder coat carbon steel EE-PSG925 assemblies come standard in zinc nickel finish 1/8” NPSC oil drain Technical Specifications 0.3 micron media; 99.97% efficiency Continuous operating temp: 68°F (20°C) to 180°F (80°C) Mounted vertically Options Additional ISO flange connections Various finishes available Assemblies without a valve Applications Ash Handling Blower Exhaust Oil Mist Blowers-Centrifugal Food Processing-Pressure Leak Detection Soil Venting/Remediation Vacuum Coating Vacuum Freeze Dry Vacuum Outgassing Industrial Vacuum Processes Captures oil fog, mist, or smoke from exhaust on oil flooded vacuum pumps Refrigeration and Air Conditioning evacuation service Semiconductor Industry Laboratory Industry Autoclaving, Sterilization
