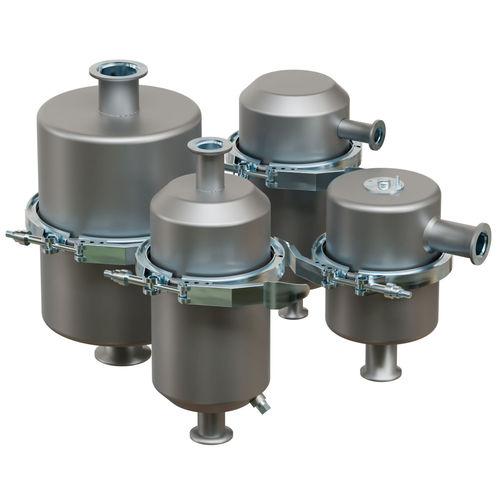

Solberg’s vacuum traps can be used to protect a variety of vacuum pump technologies from particulate, liquid, aerosol and vapor contaminants migrating from a process. Multiple insert options and configurations are available to ensure pumps are properly protected. The trap minimizes pump oil contamination resulting in significantly fewer oil changeouts and reduced maintenance costs.
Features
All stainless steel construction
Integrated drain port
Connections available NW16, 25, 40, 50
Vacuum service down to 1x10-3 Torr
Leak rate: 1x10-7 mbar L/S
Temperature range -20°C to 150°C
Fine bead blast finish
Viton O-ring
Options
Molecular Sieve
Traps water vapor and other gases
Rechargeable 13X Zeolite desiccant
Integral 120 VAC or 240 VAC regeneration heater
Reduce oil change-out
Metal Wool
Trap hydrocarbons and large particulate
Replaceable stainless steel or copper insert
Reduce contamination
Chemical Adsorbents
Trap chemicals and corrosives
Chemical compatible adsorbents available (ie: activated carbon, alumina, SodaSorb, etc.)
Reduce hazards
Fine Particulate
Trap fine particulate
Multiple media available (down to .2 micron at 99.99% efficiency)
Reduce dust and particle ingestion
