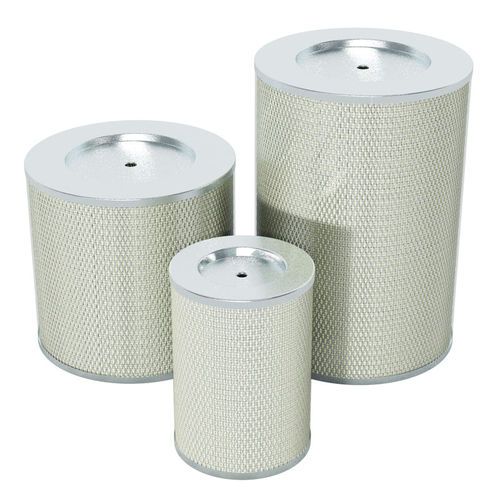

Oil filter cartridge EWP series

ultra-filtrationmetalfor general purposes

Features Reinforced with epoxy coated steel wire Expanded metal support on both sides of media Technical Specifications 0.3 micron media; 99.97% efficiency Continuous operating temp: 20°C (68°F) to 80°C (180°F) Benefits High efficiency at very low pressure drop Increased surface area in a given volume allows for low velocity separation of ultra‐fine oil mists High gravimetric efficiency means low oil carryover Environmentally friendly sealing material Options M = Molded plastisol endcap B = Endcaps have closed one end with bolt hole, open on other end G = Galvanized metal endcaps C = Closed one end, open on other end D = Element with molded open end, metal closed W = Wrapped coalescing media P = Pleated coalescing media
